Product Details:
|
| Resolution: | 1920(RGB)×1080 , FHD | Panel Size: | 13.3 Inch |
|---|---|---|---|
| Touch Panel: | Without | Pixel Density: | 166 PPI |
| Aspect Ratio: | 16:9 (H:V) | Model Alias: | LP133WF2 (SP)(L2) |
| Form Factor: | Flat Rectangle Display | Shape Style: | Slim (PCBA Flat, Depth ≤3.2mm) |
| High Light: | lg lcd display,lg replacement screen |
||

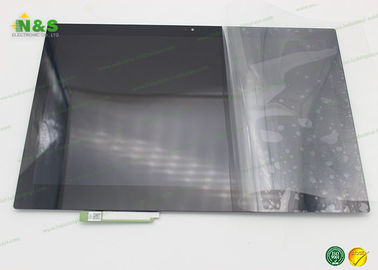

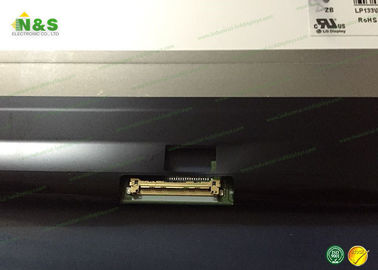

1920*1080 high brightness Flat Rectangle Display LP133WF2-SPL2 for 13.3 inch without touch
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
Mechanical Features
Panel Size : 13.3 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 166 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.05095×0.15285 mm (H×V)
Pixel Pitch : 0.15285×0.15285 mm (H×V)
Surface : Hard coating (3H)
Active Area : 293.472×165.078 mm (H×V)
Shape Style : Slim (PCBA Flat, Depth ≤3.2mm)
Landscape or Portrait : Landscape type
Touch Panel : Without
LG Display LP133WF2-SPL2 General Features
| Panel Brand : | LG Display |
| Panel Model : | LP133WF2-SPL2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 13.3 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 293.472×165.078 mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface : | Hard coating (3H) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | eDP (2 Lanes) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
LG Display LP133WF2-SPL2 Optical Features
Display Mode : IPS, Normally Black, Transmissive
Display Color : 262K (6-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
LG Display LP133WF2-SPL2 Backlight System
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 15K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
Our advantages
1. Your reply will be replied within 24 hours.
2. Good service whenever.
3. OEM service
4. No MOQ request.
5. Quick delivery: 1-3 working days
6. Each LCD panel will be tested pcs by pcs by our professional testing team.
7. One Year warranty for our LCD Screen Displays.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
