Product Details:
|
| Panel Model: | LMS430HF17-002 | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Panel Size: | 4.3 Inch | Contrast Ratio: | 800 : 1 (Typ.) |
| Display Colors: | 16.7M (8-bit) , CIE1931 50% | Response Time: | 17/15 (Typ.)(Tr/Td) |
| Lamp Type: | WLED | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 45 Pins |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
4.3 inch Samsung LCD Screen Replacements LMS430HF17-002 with 480×272
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
| Panel Brand : | SAMSUNG |
| Panel Model : | LMS430HF17-002 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | VA, Normally Black, TMR |
| Active Area : | 95.04×53.856 mm |
| Contrast Ratio : | 800 : 1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 17/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 45 pins |
| Input Voltage : | 2.5/3.3V (Typ.)(VDD) |
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Active Area : | 95.04×53.856 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
| AMS477GV07 | Samsung | 4.8" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

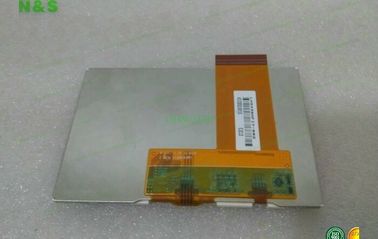

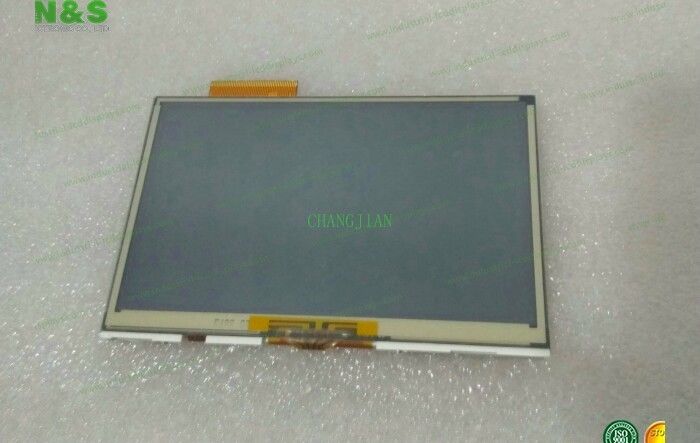

Details Pictures for Samsung LCD Screen Replacements LMS430HF17-002
