Product Details:
|
| Response Time: | 17/15 (Typ.)(Tr/Td) | Display Colors: | 16.7M (8-bit) |
|---|---|---|---|
| Contrast Ratio: | 800 : 1 (Typ.) | Outline: | 105.5×67.2×4.25 Mm |
| Active Area: | 95.04×53.856 Mm | Display Mode: | PVA, Normally Black, TMR |
| Panel Type: | LMS430HF12 | Panel Model: | A-Si TFT-LCD , Panel |
| High Light: | samsung lcd screen,samsung lcd display panel |
||
Normally Black LMS430HF12 Display 4.3 inch with 480×272
| Panel Brand : | SAMSUNG |
| Panel Model : | LMS430HF12 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | PVA, Normally Black, TMR |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2×4.25 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 17/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 50 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

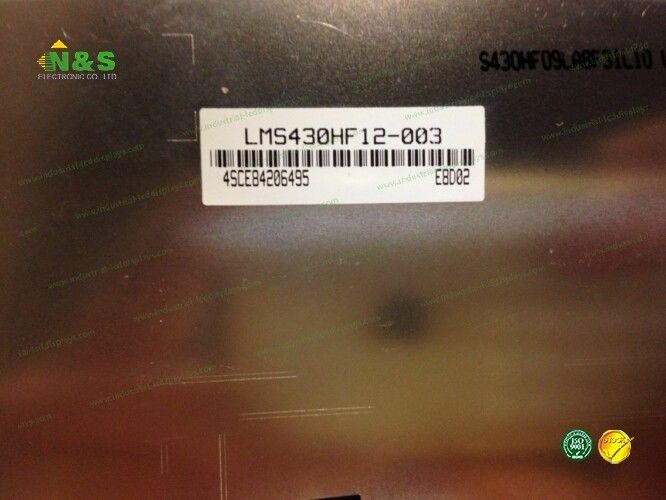

Details Pictures for LMS430HF12 Display
