Product Details:
|
| Panel Size: | 11.6 Inch | Display Mode: | IPS, Normally Black, Transmissive |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Outline: | 267.5×158.05×4.5 Mm |
| Contrast Ratio: | 600:1 (Typ.) | Display Colors: | 16.7M (8-bit) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | Input Voltage: | 3.3V (Typ.) |
| High Light: | lg display panel,lg replacement screen |
||

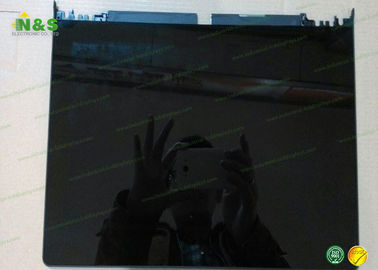

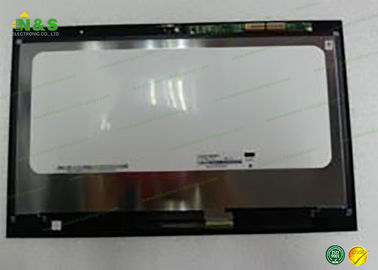

New and Original ,1366*768 high brughtness LP116WH4-SLN1 LG LCD Panel with 11.6 inch
Trade Terms:
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box.
General Features
Panel Brand : LG Display
Panel Model : LP116WH4-SLN1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 11.6 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : IPS, Normally Black, Transmissive
Active Area : 256.125×144 mm
Outline : 267.5×158.05×4.5 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
| LH350H04-SH01 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Mechanical Features
| Panel Size : | 11.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 135 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch : | 0.1875×0.1875 mm (H×V) |
| Weight : | 200g (Max.) |
| Surface : | Antiglare |
| Active Area : | 256.125×144 mm (H×V) |
| Outline Dimension : | 267.5×158.05 mm (H×V) |
| Outline Depth : | 4.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (6 pcs) on left, right, up slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
Display Mode : IPS, Normally Black, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.4/1.6 (Typ./Max.)(13 points)
Our advantage:
1. Every item is brand new, tested and guaranteed to work perfectly
2. We can promise the quality.
3. 90 days warranty availed since the date we sell the product.
4. We specialize in this field for 5 years with professional engineers and repair teams.
5. The general volume orders, 5-10 working days can be ready.
6. Minimum order quantity (MOQ) is 1pc.
7. We offer free replacement or repair of defectives within period of warranty or refund within 7 days.
8. We always use DHL, UPS, TNT, EMS or Fedex shipment methods.

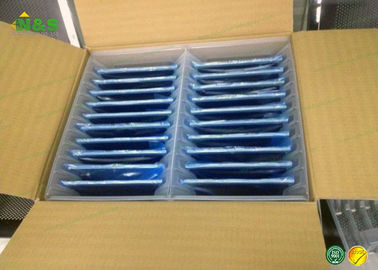

9. Packing each item wrapped with foam into a static bag, 2pcs/inner box, 10 boxes/ctn
one piece : (37cm X 29cm X 7cm) or (42cm X 29cm X 7cm)
many pieces:(48cmX45cmX30cm) or (64cm X 51cm X 46cm)
Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
