Product Details:
|
| Display Scale: | 5:4 | Pixel Arrangement: | LCR Vertical Stripe |
|---|---|---|---|
| Weight: | 1.55Kgs (Typ.) | Outline Depth: | 17.5 (Max.) Mm |
| Operation Temperature: | 0 °C ~ 50 °C | Display Area: | 380.32×305.06 |
| Backlight: | WLED | Luminance: | 1000 Nits |
| High Light: | auo display panel,auo lcd screen |
||

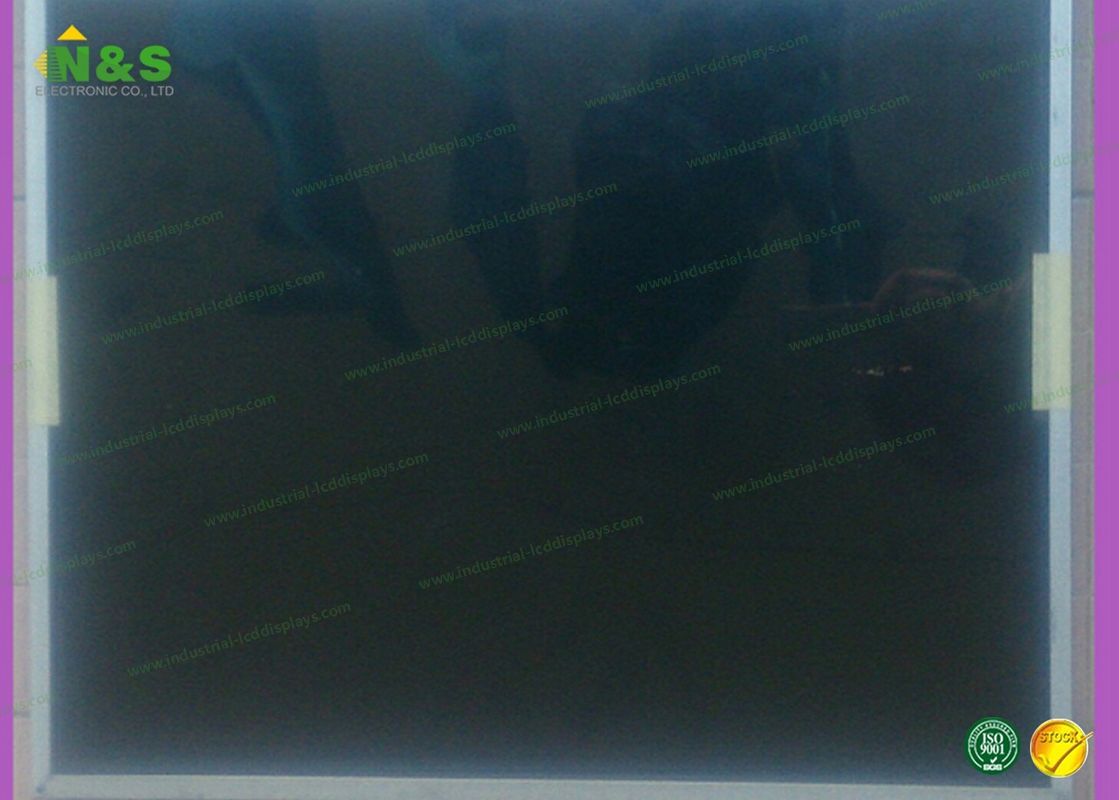

AUO G190EAN01.2 19 inch medical monitor screen with 1280*1024 Resolution
G190EAN01.2 Mechanical Features
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(LCR)×1024 (SXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 1.55Kgs (Typ.) |
| Surface : | Antiglare |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.32×305.06 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 17.5 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
G190EAN01. 2 Photoelectric Parameters
| Display mode | AHVA, Normally Black, Transmissive |
| Luminance | 1000 nits |
| Contrast Ratio | 1000:1 |
| Color | Grayscale (8-bit) |
| Response | 13/12 (Tr/Td) ms |
| Viewing Angle | 89/89/89/89(U/D/L/R) |
| The Best View | Symmetry |
| White Field Chroma | X:0.265; Y:0.305 |
| White Field Dynamic | 1.25 (9 points) |
| Scanning Frequency | 60Hz |
| Reverse Scan | No |
| The kind of Singnal | LVDS |
| Interface | LVDS |
| Singnal Interface Definition | LVDS-30P2C8B-190A |
| Drive-screen voltage | 5.0V |
| Input Current | 0.7A |
| Kind of Singnal Interface | Terminal |
| Brand of Singnal Interface | STM |
| Model of Singnal Interface | FI-XB30SSL-HF15 |
| Pitch of Singnal Interface | 1.25 mm |
| Pin of Singnal Interface | 9 pins |
Main Products:
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.

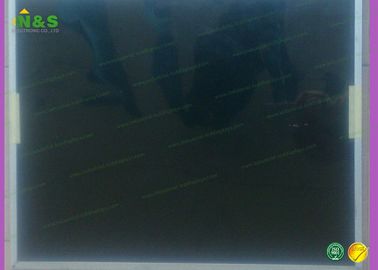

Products G190EAN01. 2 Photo:

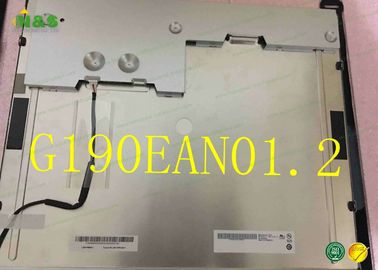

Backside Photo
Tabs Photo

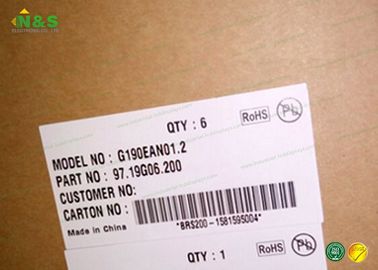

Packaging Photo
