Product Details:
|
| Dot Resolution: | 640(RGB)×480 (VGA) | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Panel Brand: | LG Semicon | Frequency: | 60Hz |
| Brightness: | 200 Cd/m² (Typ.) | Panel Type: | A-Si TFT-LCD , Panel |
| Weight: | 410g (Typ.) | Aspect Ratio: | 4:3 (H:V) |
| Display Mode: | TN, Normally White, Transmissive | Viewing Direction: | 6 O'clock |
| High Light: | lg display panel,lg replacement screen |
||

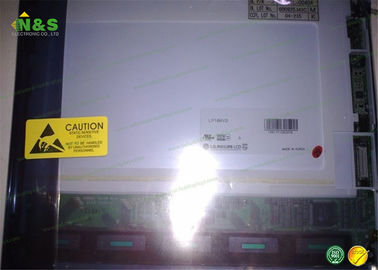

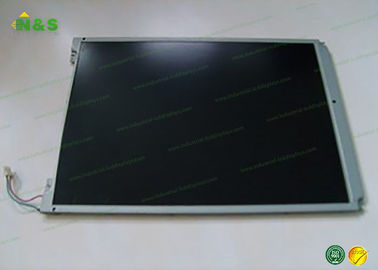

New and original 10.4 inch LP104V2 for 640*480 without touch LG Semicon
Mechanical Features:
Panel Brand : LG Semicon
Panel Model : LP104V2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 246.5×179.4 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio :
Display Colors : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage : 3.3V (Typ.)(VDD)
LG Semicon LP104V2 Mechanical Features:
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 410g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 216.2×163.4 mm (H×V) |
| Outline Dimension : | 246.5×179.4 mm (H×V) |
| Outline Depth : | 8.0 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LG Semicon LP104V2 Optical Features:
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Display Color : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.320; Wy:0.330
White Variation : 1.45 (Max.)(9 points)
LG Semicon LP104V2 Backlight System:
| Lamp Position : | Edge light type (Top side) |
| Lamp Type : | CCFL |
| Lamp Amount : | 1 pcs |
| Lamp Shape : | Straight |
| Lamp Life Time : | 10K(Min.) (Hours) |
| Interface Type : | Connector |
