Product Details:
|
| Active Area: | 376.32×301.056 Mm | Luminance: | 300 Nits |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Response: | 13/12 (Tr/Td) Ms |
| White Field Chroma: | X:0.313; Y:0.329 | Scanning Frequency: | 60Hz |
| High Light: | auo display panel,auo lcd screen |
||
G190EAN01.0 AUO 19 inch 1280*1024 resolution lcd panel with wide viewing angle
Our Service Areas
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products;
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
* All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
Quick Details
| Productor | AUO |
| MODEL | G190EAN01.0 |
| Size | 19.0 inch |
| Resolution | 1280×1024 |
| Resolution Name | SXGA |
| Display scale | 5:4 |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.098×0.294 mm |
| Panel Composition | LCD Screen |
| Technology | a-Si TFT-LCD |
| Applications | Industry |
| Panel Features | Wide color gamut, white LED, cabin LED driver], mist, wide perspective |
Mechanical Features
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 1.55Kgs (Typ.) |
| Surface : | Antiglare |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.32×305.06 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 9.0/17.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Corporate Main Products:

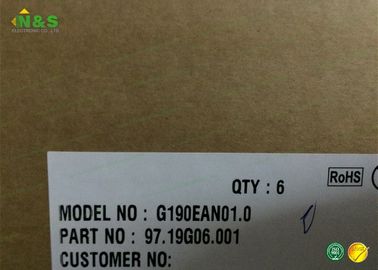

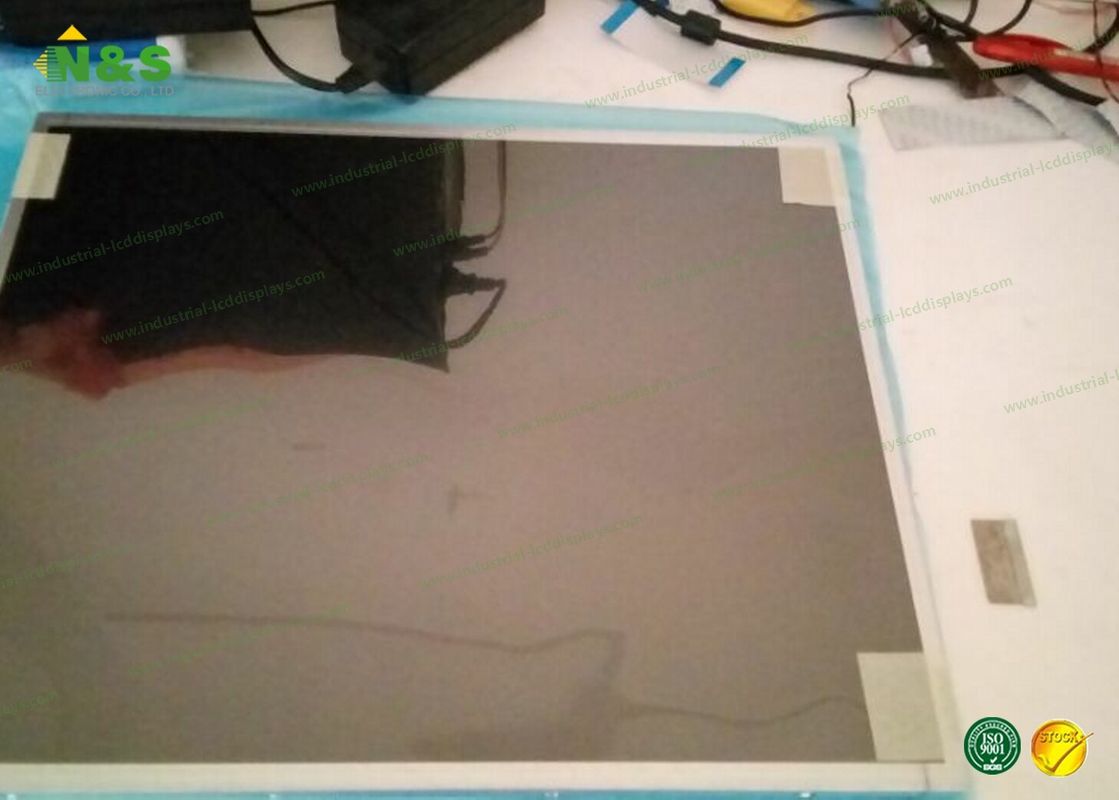

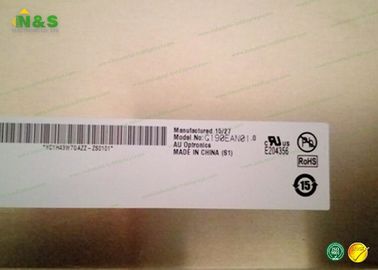

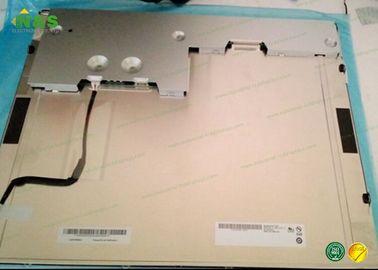

Product Image for G190EAN01.0
