Product Details:
|
Touch Panel: | Without | Dot Resolution: | 1280(RGB)×800 (WXGA) |
---|---|---|---|
Operating Temperature: | 0 ~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
Panel Size: | 10.1 Inch | Display Colors: | 16.7M (6-bit + Hi-FRC) |
Frequency: | 60Hz | Brightness: | 400 Cd/m² (Typ.) |
Panel Type: | A-Si TFT-LCD , Panel | Weight: | 180g (Max.) |
High Light: | lg display panel,lg replacement screen |

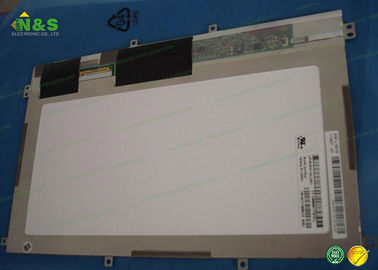

10.1 inch 1280*800 high brightness LP101WX2-SLP1 LG LCD Panel without touch
Payment and Shipment
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
NOTICE: delivery time should not be considered as an aspect of your feedback.
LG Display LP101WX2-SLP1 Mechanical Features:
Panel Size : | 10.1 inch |
Dot Resolution : | 1280(RGB)×800 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 149 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0565×0.1695 mm (H×V) |
Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
Weight : | 180g (Max.) |
Surface : | Glare (Haze 0%) |
Active Area : | 216.96×135.6 mm (H×V) |
Outline Dimension : | 228.6×148.15 mm (H×V) |
Outline Depth : | 2.5/4.45 (Max.) mm |
Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
LG Display LP101WX2-SLP1 Optical Features:
Display Mode : IPS, Normally Black, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Min.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Response Time : 35 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
Guarantee and Refund
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
> Excellent service:
We mainly sell Industrial LCD panels and touch screens , providing information and technical consultation for all kinds of LCD screens and touch screens, Wehave many parts in stock ,such as the brand for GT/GUNZE,FUJITSU,HITECH,SIEMENS,HAKKO,WEINVIW,ELO parts. And 4.7-15 inches is between the various size of industrial screen, They are applicable to vehicles, medical equipments, injection molding machines ,industrial equipments etc.
we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices .
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LH176J04-TH01 | LG Display | 1.8" | 176×220 |
LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
LH350H04-SH01 | LG Display | 3.5" | 320×480 |
LH156J01-TH01 | LG Display | 1.6" | 160×96 |
LC470EUJ-FFK1 | LG Display | 47" | 1920×1080 |
LC500DUJ-FFE1 | LG Display | 50" | 1920×1080 |
LM215WF4-TJC1 | LG Display | 21.5" | 1920×1080 |
LM230WF3-SJD1 | LG Display | 23.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
