Product Details:
|
| Resolution: | 1280×1024, SXGA | Size: | 17 Inch |
|---|---|---|---|
| Display Scale: | 5:4 | Color: | 16.7M |
| Backlight: | CCFL | Weight: | 2.00Kgs (Typ.) |
| High Light: | auo display panel,auo lcd screen |
||
Wholesale Original AUO G170EG01 V0 17 inch 1280*1024 XGA TFT-LCD Panel
Our Promise for our LCD Panels:
Quality Control:
1.Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2.Function Inspection
Make sure all functions are 100% tested ok.
You will get reply within 24 Hours and:
1 Year warranty
1 Day shipping
0 Return
Primary Competitive Advantages:
G170EG01 V0 Mechanical Features
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.6×274.0 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 15.8 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
G170EG01 V0 Optical&Electronics Feature
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 380 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max)(9 points) |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 22.2 W(Typ.) |

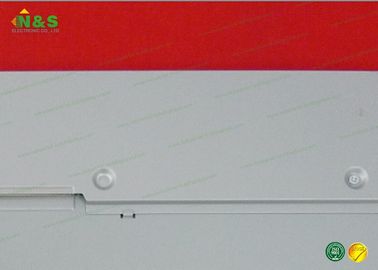

Products AUO G170EG01 V0 Image

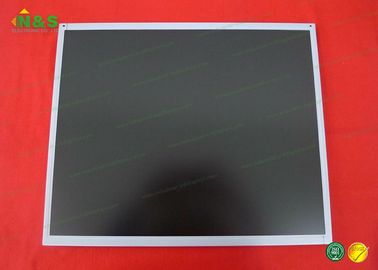

Profile Picture

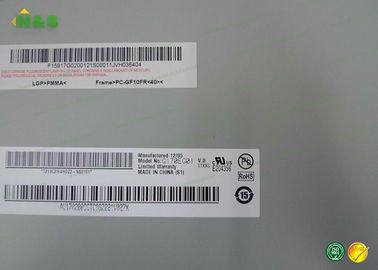

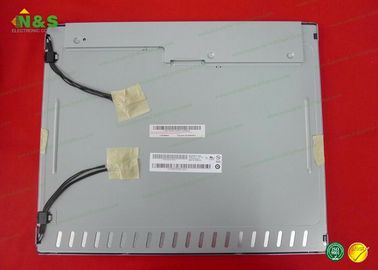

Backside Picture
Tabs Picture
