Product Details:
|
| Resolution: | 1920(RGB)×1080 , FHD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Brightness: | 400 Cd/m² (Typ.) | Display Colors: | 16.2M (6-bit + FRC) , CIE1931 72% |
| Signal Interface: | EDP (2 Lanes) , 40 Pins | Display Mode: | AHVA, Normally Black, Transmissive |
| High Light: | auo display panel,auo lcd screen |
||

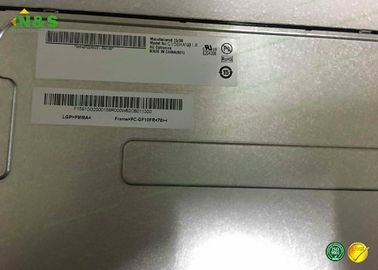

G156HAN01.0 1920x1080 lcd panel repair / Full High Definition replacement lcd display tft
AUO G156HAN01.0 General Features
| Panel Brand : | AUO |
| Panel Model : | G156HAN01.0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Active Area : | 344.16×193.59 mm |
| Outline : | 363.8×215.9×9.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Input Voltage : | 3.3V (Typ.) |
| Operating Temperature : | -10 ~ 60 °C |
| Storage Temperature : | -20 ~ 60 °C |
Our Main Products: 1. AUO LCD Panel
2. Innolux LCD Panel
3. Tianma LCD Displays
4. Samsung LCD Panel
5. Chimei LCD Screen
6. Innolux LCD Display
7. Hitachi LCD Panel
8. NEC LCD Screen Replacement
9. Sharp LCD Screen
10. TFT LCD Module
11. Industrial LCD Displays
AUO G156HAN01.0 Optical and Electronics Features
| Optical Features | |
| Display Mode : | AHVA, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Electronics Feature | |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 13.4W (Max.) |
