Product Details:
|
| Panel Size: | 10.1 Inch | Panel Brand: | LG Display |
|---|---|---|---|
| Weight: | 195g (Max.) | Pixel Configuration: | RGB Vertical Stripe |
| Touch Panel: | Without | Form Factor: | Flat Rectangle Display |
| Brightness: | 200 Cd/m² (Typ.) | Dot Resolution: | 1024(RGB)×576 , WSVGA |
| High Light: | lg display panel,lg replacement screen |
||

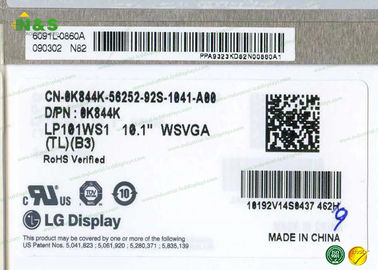

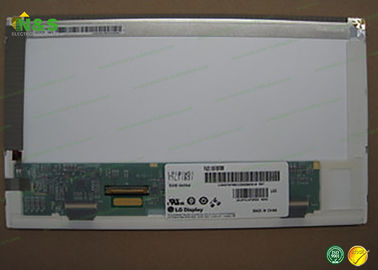

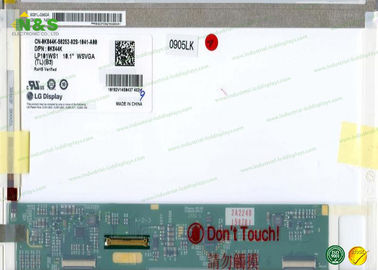

Original 1024*576 LP101WS1-TLB3 LG LCD Panel for 10.1 inch, Without Touch
Company Information:
ShenZhen N&S Technology CO., LTD was established in 2010, Speciliazed in the LCD product development / production, we holds the operating philosophy of "quality, service, responsibility, innovation".
Our products have passed the certification of ISO9001 Quality Management Systemin order to improve quality of our products.
We have a wealth of professional experience and strong research and development, always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
LG Display LP101WS1-TLB3 Optical Features:
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Min.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
LG Display LP101WS1-TLB3 Backlight System:
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 10K(Min.) (Hours) |
| Lamp Voltage : | 28.8/30.6V (Typ./Max.) |
| Lamp Current : | 19mA (Typ.) |
| Lamps Power Consumption : | 1.64/1.74W (Typ./Max.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 4.5/21V (Min./Max.) |
LG Display LP101WS1-TLB3 General Features:
Panel Brand : LG Display
Panel Model : LP101WS1-TLB3
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.1 inch
Resolution : 1024(RGB)×576 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 222.72×125.28 mm
Outline : 235×143×5.2 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Surface : Antiglare
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 300:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
Our Advantages for LCD panel:
1. FOG automatical device can ensure the capacity of 1000,000 per month.
2. MOQ can be 100pcs, lead time of standard products is 20 days.
3. Reliability test and full examination to ensure the high quality of the display.
4. OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
5. Strictly ISO quality management system.
6. Mature and Professional R&D and after service.
7. Various cooperation experience with big brands
Our Services :
1. Our Operation Orinciple:
Quality first, customer supreme.
Integrity management, credit highest.
2. Our service:
We provide professional one-stop electronic components supporting services.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
