Product Details:
|
| Brightness: | 360 Cd/m² (Typ.) | Aspect Ratio: | 16:9 (H:V) |
|---|---|---|---|
| Panel Size: | 10.1 Inch | Dot Resolution: | 1366(RGB)×768 , WXGA |
| Display Colors: | 16.7M (8-bit) | Panel Brand: | LG Display |
| Weight: | 220g (Max.) | Pixel Configuration: | RGB Vertical Stripe |
| Model Alias: | LP101WH4 (SL)(A3) | Form Factor: | Flat Rectangle Display |
| High Light: | lg lcd display,lg replacement screen |
||

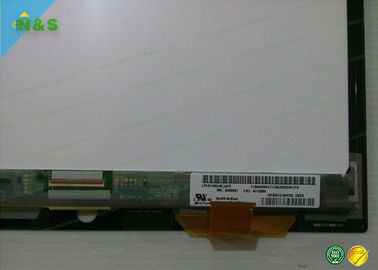

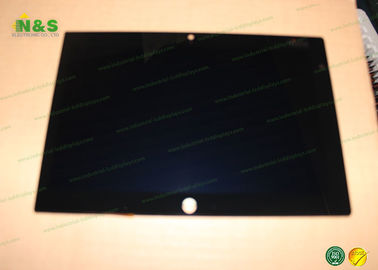

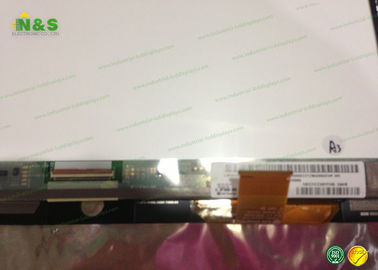

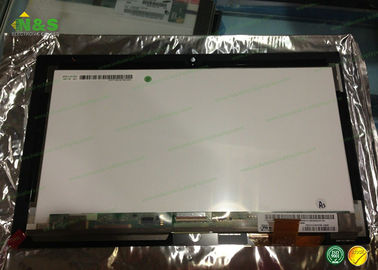

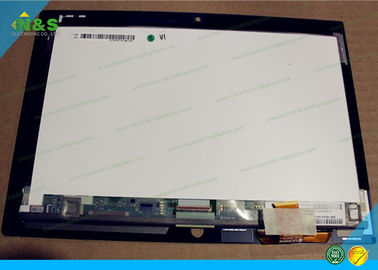

10.1 inch High Brightness LG LCD Panel LP101WH4-SLA3 with touch,1366*768
LG Display LP101WH4-SLA3 Optical Features:
Display Mode : IPS, Normally Black, Transmissive
Brightness : 360 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.20/1.40 (Typ.)(5/13 points)
Specifications :
| Panel Brand : | LG Display |
| Panel Model : | LP101WH4-SLA3 |
| Panel Type : | a-Si TFT-LCD , Assembly |
| Panel Size : | 10.1 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Active Area : | 222.52×125.11 mm |
| Outline : | 251.3×160.6×5.8 mm |
| Surface : | Anti Fingerprint, Hard coating (8H) |
| Brightness : | 360 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
LG Display LP101WH4-SLA3 Mechanical Features:
Panel Size : 10.1 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 155 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0543×0.1629 mm (H×V)
Pixel Pitch : 0.1629×0.1629 mm (H×V)
Weight : 220g (Max.)
Surface : Anti Fingerprint, Hard coating (8H)
Active Area : 222.52×125.11 mm (H×V)
Outline Dimension : 251.3×160.6 mm (H×V)
Outline Depth : 3.85/5.8 (Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (Projected Capacitive Touch)
Panel Cover : With Cover Lens
Trade Terms:
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box.
Our company:
We have a good reputation in the trading of lcd panel and have built up a wide and stable relationship with agency and distributors of lcd panel.
Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in China market.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the panels.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
