Product Details:
|
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) | Surface: | Antiglare |
|---|---|---|---|
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% | Active Area: | 304.128×228.096 Mm |
| Lamp Type: | WLED Embedded (LED Driver) | Panel Type: | A-Si TFT-LCD , Panel |
| High Light: | auo display panel,auo lcd screen |
||
15 Inch AUO LCD Panel G150XTN06.2 , 1024*768 XGA TFT LCD Display
Product Competitive Advantages:
G150XTN06.2 General Features
| Panel Brand : | AUO |
| Panel Model : | G150XTN06.2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Outline : | 326.5×253.5×12 mm |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) |
| Frequency : | 60Hz |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
SERVICE SCOPE
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products.
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
* All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
AUO G150XTN06.2 Signal Interface
| Signal Category | LVDS | |||||
| Signal Class | LVDS (1 ch, 6/8-bit) | |||||
| Input Voltage for Panel | 3.3V (Typ.) | |||||
| Input Current for Panel | 450/750mA (Typ./Max.) | |||||
| Panel Power Consumption | 1.5/2.475W (Typ./Max.) | |||||
| Interface Type | Connector | |||||
| Signal Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-135A | |

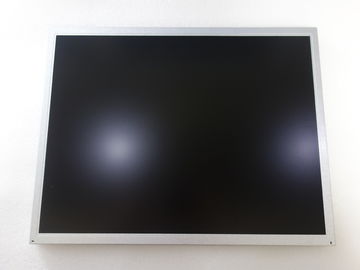

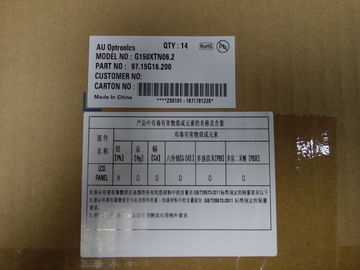

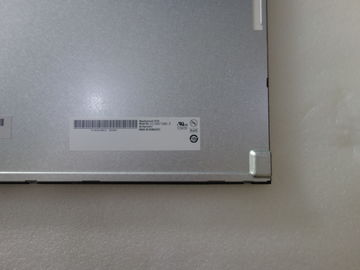

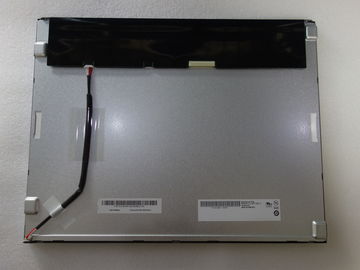

Product Image:
