Product Details:
|
| Panel Composition: | Liquid Crystal Display | Storage Temperature: | -20°C ~ 70°C |
|---|---|---|---|
| Outline: | 326.50× 253.50×6.30 Mm | Life Time Of Lamp: | 50K Hours |
| Brightness: | 500 Cd/m² (Typ.) | Display Mode: | TN, Normally White, Transmissive |
| High Light: | auo display panel,auo lcd screen |
||
AUO G150XTN06.1 15 Inch Industrial Display Screen for Outdoor and Advertising
What We Do
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models

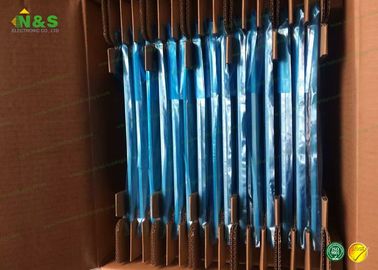

Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Why us
Product Specifications
SPECIFICATION:
| Productor | AUO |
| MODEL | G150XTN06.1 |
| Size | 15.0 inch |
| Resolution | 1024×768 |
| Resolution Name | XGA |
| Display scale | 4:3 |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.099×0.297 mm |
| Panel Composition | Liquid Crystal Display |
| Technology | a-Si TFT-LCD |
| Applications | Industry |
| Display mode | TN, Normally White, Transmissive |
| Luminance | 500 nits |
| Contrast Ratio | 700:1 |
| Color | 262K/16.2M |
| Color Saturation | 60%NTSC(CIE1931) |
| Response | 5.7/2.3 (Tr/Td) ms |
| Viewing Angle | 60/80/80/80(U/D/L/R) |
| White Field Chroma | X:0.313; Y:0.329 |
| White Field Dynamic | 1.25 (9 points) |
| Scanning Frequency | 60Hz |
Optical&Electronics Features
| Optical Features | |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Electronics Feature | |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 11.5W (Typ.) |
Product Photograph for G150XTN06.1

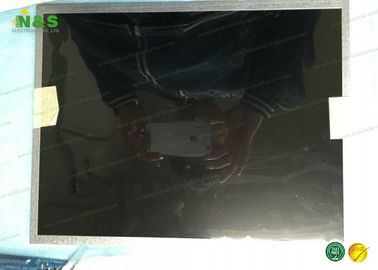

Front Photograph

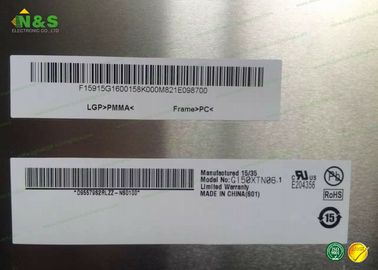

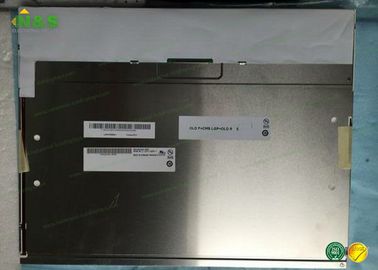

Backside Photograph
Tabs Photograph
