Product Details:
|
Brightness: | 400 Cd/m² (Typ.) | Aspect Ratio: | 4:3 (H:V) |
---|---|---|---|
Panel Size: | 9.7 Inch | Dot Resolution: | 1024(RGB)×768 (XGA) |
Active Area: | 196.608×147.456 Mm | Panel Brand: | LG Display |
Weight: | 143g (Max.) | Pixel Density: | 132 PPI |
High Light: | lg display panel,lg lcd display |

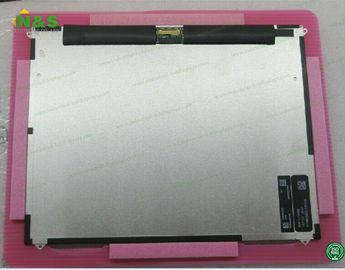

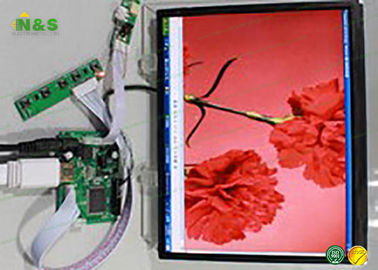

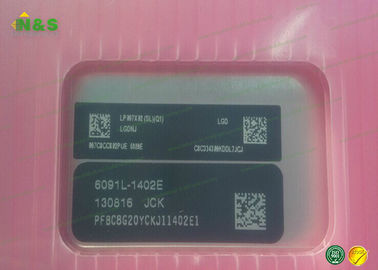

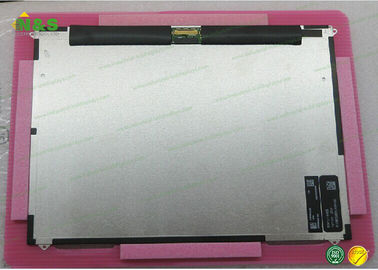

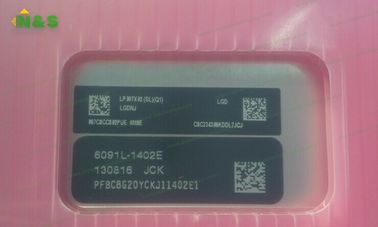

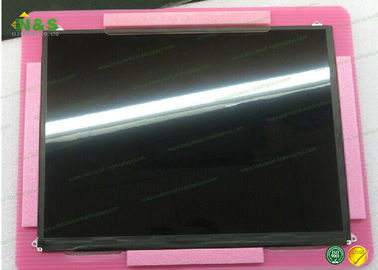

1024*768 High Brightness LP097X02-SLQ1 for 9.7 inch, Without Touch LG Display
Our Services :
1. Our Operation Orinciple:
1) Quality first, customer supreme.
2) Integrity management, credit highest.
LG Display LP097X02-SLQ1 Mechanical Features:
Panel Size : | 9.7 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 132 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.064×0.192 mm (H×V) |
Pixel Pitch : | 0.192×0.192 mm (H×V) |
Weight : | 143g (Max.) |
Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
Active Area : | 196.608×147.456 mm (H×V) |
Bezel Area : | 201.01×151.86 mm (H×V) |
Outline Dimension : | 210.32×164.37 mm (H×V) |
Outline Depth : | 2.88/5.22 (Max.) mm |
Holes & Brackets : | Face mounting holes (4 pcs) on left, right, down slugs |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Specifications :
Panel Brand : LG Display
Panel Model : LP097X02-SLQ1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 9.7 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : H-IPS, Normally Black, Transmissive
Active Area : 196.608×147.456 mm
Outline : 210.32×164.37×5.22 mm
Surface : Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S6P WLED Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 30 pins
Input Voltage : 3.3V (Typ.)
LG Display LP097X02-SLQ1 Optical Features:
Display Mode : | H-IPS, Normally Black, Transmissive |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 35 (Typ.)(Tr+Td) |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | Symmetry |
White color Chromaticity : | Wx:0.309; Wy:0.317 |
White Variation : | 1.40/1.60 (Typ./Max.)(17 points) |
