Product Details:
|
| Surface: | Antiglare, Hard Coating (3H) | Lamp Type: | WLED Embedded (LED Driver) |
|---|---|---|---|
| Pixel Arrangement: | RGB Vertical Stripe | Technology: | A-Si TFT-LCD |
| Luminance: | 450 Nits | Aspect Ratio: | 4:3 (H:V) |
| Weight: | 1.00Kgs (Max.) | Outline Depth: | 12.0±0.5 Mm |
| High Light: | auo lcd screen,auo lcd display |
||
High Brightness G150XTN06.0 AUO lcd panel module with Wide temperature
Primary Competitive Advantages:
G150XTN06.0 Backlight System
| Lamp Position : | Edge light type (Bottom side) | |||||
| Lamp Type : | WLED | |||||
| Lamp Life Time : | 70K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Interface Type : | Connector | |||||
| Backlight Interface: | Brand | Model | Pin Pitch | Pins | Amount | |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | ||
| Lamp Driver Board : | Embedded (LED Driver) | |||||
| Lamp Driver Board : | 12.0±1.2V | |||||
| Lamp Driver Board : | 0.75A (Typ.) | |||||
| Lamp Driver Board : | 9.0W (Typ.) | |||||
Products Technical Parameters
| 1.Resolution : | 1024(RGB)×768 , XGA |
| 2.Active Area : | 304.128×228.096 mm |
| 3.Outline : | 326.5×253.5×12.5 mm |
| 4.Brightness : | 450 cd/m² (Typ.) |
| 5.Contrast Ratio : | 800:1 (Typ.) |
| 6.Dot Pitch : | 0.099×0.297 mm (H×V) |
| 7.Pixel Pitch : | 0.297×0.297 mm (H×V) |
| 8.Bezel Area : | 307.4×231.3 mm (H×V) |
| 9.Outline Dimension : | 326.5×253.5 mm (H×V) |
| 10.Outline Depth : | 12.0±0.5 mm |
| 11.White color Chromaticity : | Wx:0.311; Wy:0.322 |
| 12.White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| 13.Total Power Consumption : | 12.0W (Typ.) |
| 14.Lamp Life Time : | 70K(Typ.) (Hours) |
| 15.Lamp Driver Board : | 12.0±1.2V |
| 16.Lamp Driver Board : | 0.75A (Typ.) |
| 17.Lamp Driver Board : | 9.0W (Typ.) |
| 18.Input Voltage for Panel : | 3.3V (Typ.) |
| 19.Input Current for Panel : | 450/750mA (Typ./Max.) |
| 20.Panel Power Consumption : | 1.49/2.48W (Typ./Max.) |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service:
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.

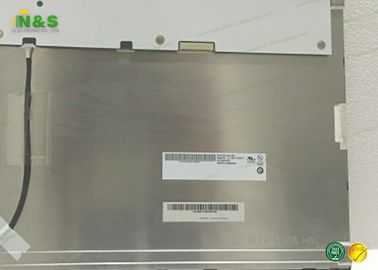

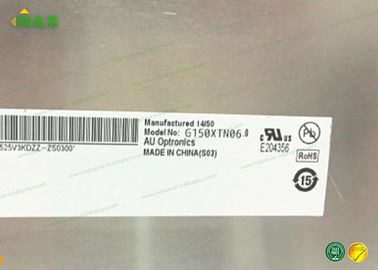

AUO G150XTN06.0 Picture Show:
