Product Details:
|
| Outline: | 326.5×253.5×12 Mm | Display Scale: | 4:3 |
|---|---|---|---|
| Resolution: | 1024×768 | Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 65% |
| Active Area: | 304.128×228.096 Mm | Weight: | 1.00Kgs (Max.) |
| High Light: | auo lcd screen,auo lcd display |
||
15'' TFT LCD Panel G150XTN05.0 , Industrial Application panel with Embedded LED Driver
Product Specification
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.00Kgs (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
AUO G150XTN05.0 Optical&Electronics Features
Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut : 65% NTSC (CIE1931)
Response Time : 5.7/2.3 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Electronics Feature
Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)
Total Power Consumption : 7.66W (Typ.)
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Quality Control:
1.Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2.Function Inspection
Make sure all functions are 100% tested ok.
Packaging Details:
Product Picture for AUO G150XTN05.0

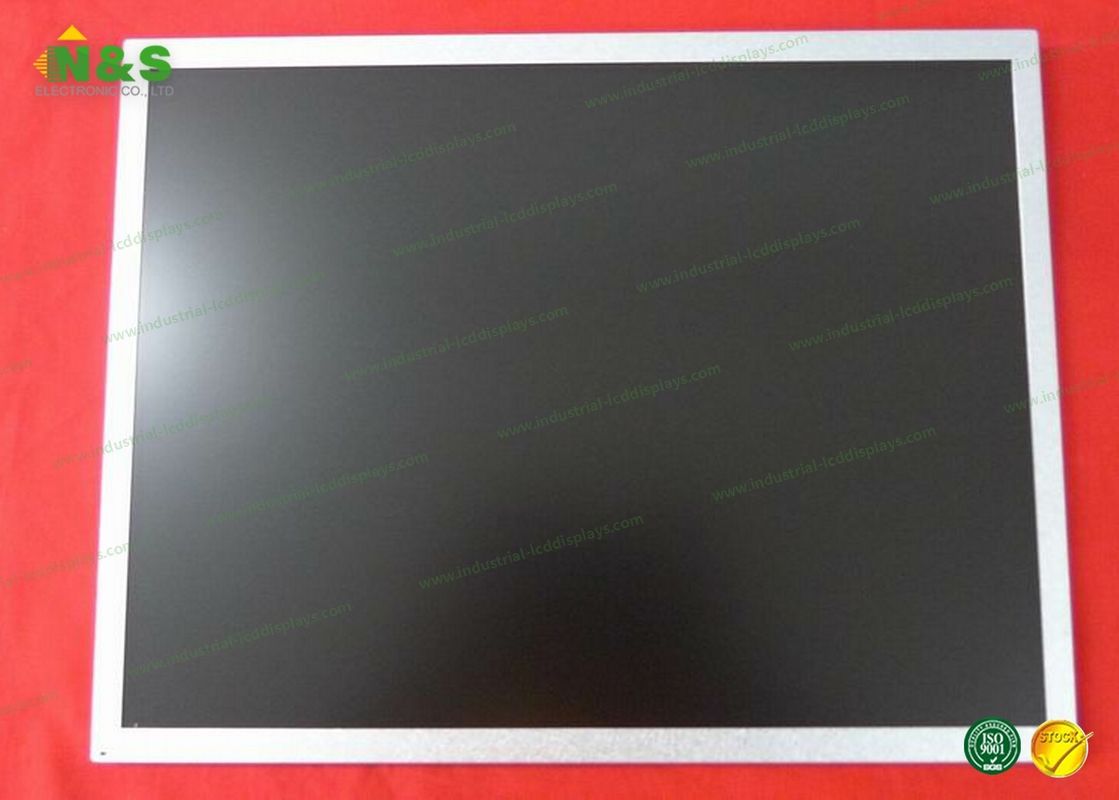

Profile Picture

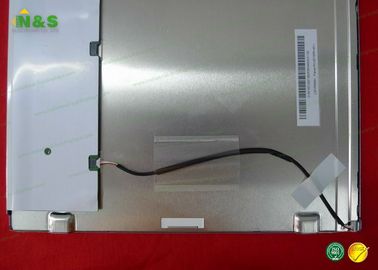

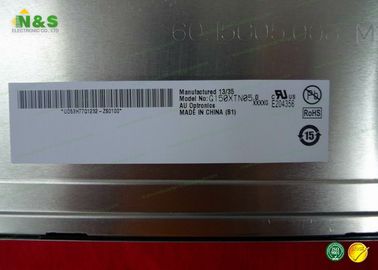

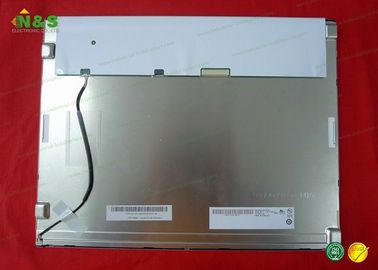

Backside Picture

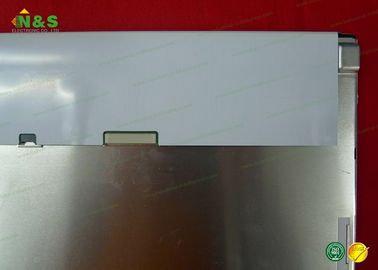

Tabs Picture
