Product Details:
|
| Pixel Pitch: | 0.297×0.297 Mm (H×V) | Operating Temperature: | 0 ~ 65 °C |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Color Gamut: | 60% NTSC (CIE1931) |
| Holes & Brackets: | Side Mounting Holes (4-M3) On Left, Right Bezel | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) |
| Resolution: | 1024(RGB)×768 , XGA | Storage Temperature: | -20 ~ 65 °C |
| High Light: | auo lcd screen,auo lcd display |
||
15 inch AUO LCD panel G150XG03 V3 TFT LCD with 180 degree flip display
Our Service
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Primary Competitive Advantages:
Product Features:
Model: G150XG03 V3
| Specifications | Panel Brand : | AUO |
| Panel Model : | G150XG03 V3 | |
| Panel Type : | a-Si TFT-LCD , Panel | |
| Panel Size : | 15.0 inch | |
| Resolution : | 1024(RGB)×768 , XGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 304.128×228.096 mm | |
| Outline : | 326.5×253.5×12 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 700:1 (Typ.) | |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% | |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) | |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins | |
| Input Voltage : | 3.3V (Typ.) |
AUO G150XG03 V3 Optical and Electronics Features
| Optical Features | |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Electronics Feature | |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Power Consumption : | 12.82W (Typ.) |

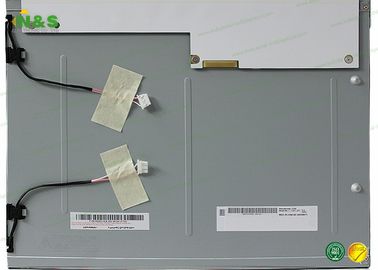

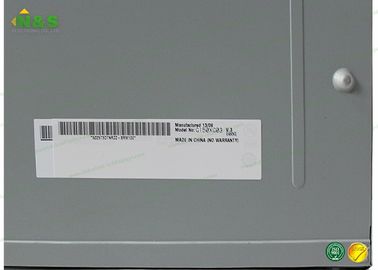

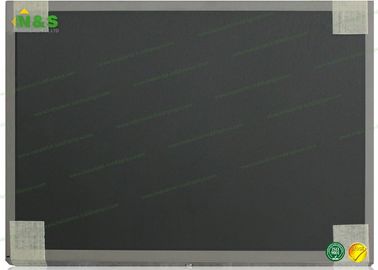

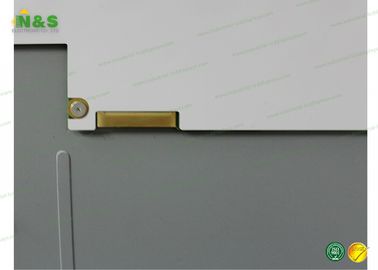

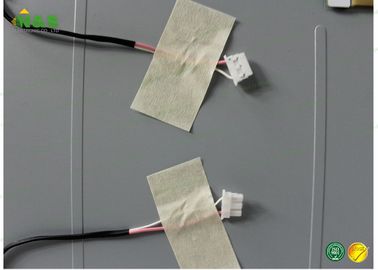

Details Picture for AUO G150XG03 V3
