Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Brightness: | 550 Cd/m² (Typ.) |
|---|---|---|---|
| Response Time: | 5.7/2.3 (Typ.)(Tr/Td) | Lamp Type: | 4 Pcs CCFL Without Driver |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins | Input Voltage: | 3.3V (Typ.) |
| High Light: | auo display panel,auo lcd screen |
||
15'' High brightness AUO LCD Panel G150XG02 V1 with 1024*768 Resolution
Products Essential Parameter
| Productor | AUO |
| MODEL | G150XG02-V1 |
| Size | 15.0 inch |
| Resolution | 1024×768 |
| Resolution Name | XGA |
| Display scale | 4:3 (H:V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.099×0.297 mm |
| Panel Composition | LCD Screen |
| Technology | a-Si TFT-LCD |
| Applications | Industry |
| Panel Features | Gray-scale optional,flip display,mist side, high brightness,wide Angle,wide temperature |
AUO G150XG02 V1 Backlight System
|
Lamp Position |
Edge light type (Top and Bottom) |
|||||
|
Lamp Type |
CCFL |
|||||
|
Lamp Amount |
4 pcs |
|||||
|
Lamp Shape |
Straight |
|||||
|
Lamp Life Time |
50K(Min.) (Hours) |
|||||
|
Lamp Replaceable |
Replaceable |
|||||
|
Lamp Voltage |
630±63V |
|||||
|
Lamp Current |
3.0/6.5/7.0mA (Min./Typ./Max.) |
|||||
|
Lamp Operating Frequency |
40/46/65KHz (Min./Typ./Max.) |
|||||
|
Lamp Startup Voltage |
1100/1450V (Max.)(Ta=+25/0℃) |
|||||
|
Lamps Power Consumption |
14.8/16.4/18.0W (Min./Typ./Max.) |
|||||
|
Interface Type |
Connector |
|||||
|
Backlight Interface |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
|
JST |
BHR-03VS-1 |
4.0 mm |
3 pins |
4 pcs |
BLL-3PINS-HNL |
|
|
Lamp Driver Board |
No |
|||||
Quality Control:
1.Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2.Function Inspection
Make sure all functions are 100% tested ok.
Our Advantage:
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service:
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Products AUO G150XG02 V1 Picture

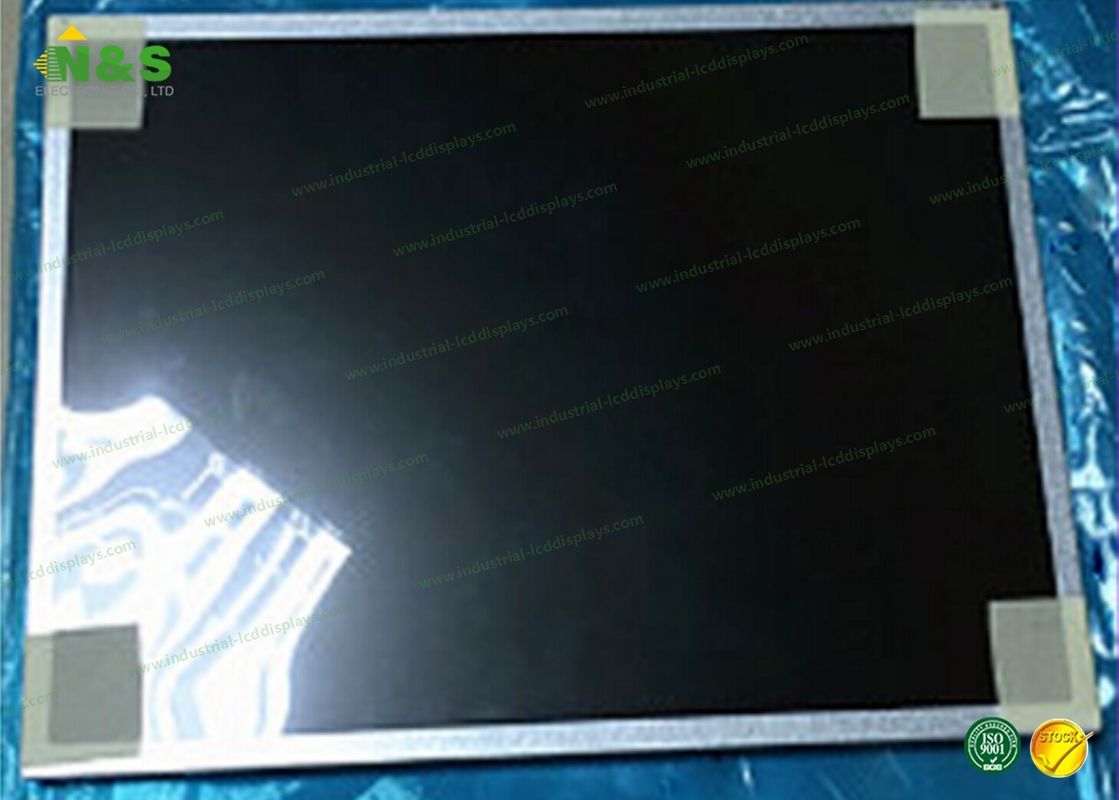

Profile Picture

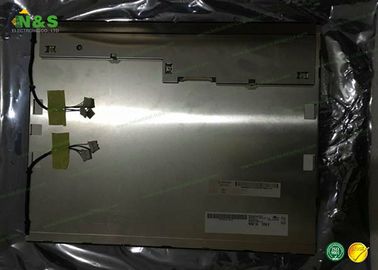

Backside Picture

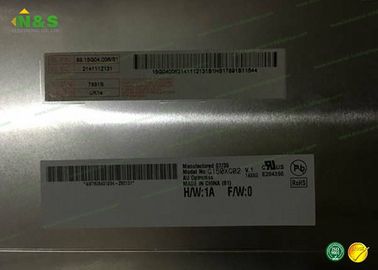

Tabs Picture
