Product Details:
|
| Display Colors: | 16.7M (8-bit) | Response Time: | 25 (Typ.)(Tr+Td) |
|---|---|---|---|
| Viewing Angle: | 70/70/65/55 (Typ.)(CR≥10) (L/R/U/D) | Panel Brand: | LG Display |
| Panel Model: | LB043WQ2-TD01 | Panel Type: | A-Si TFT-LCD , Panel |
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 95.04×53.856 Mm |
| High Light: | lg display panel,lg replacement screen |
||

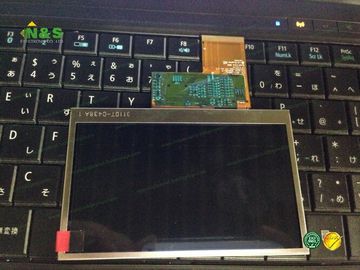

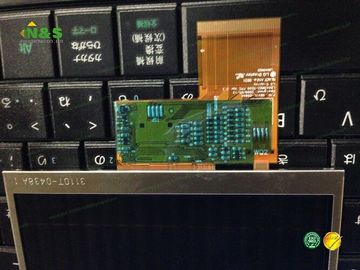

Normally White LB043WQ2-TD01 LG LCD Panel with 480*272 for Portable Navigation Device panel
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2. Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
| LH350H04-SH01 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Brand : | LG Display |
| Panel Model : | LB043WQ2-TD01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/65/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 45 pins |
| Input Voltage : | 2.5/3.3V (Typ.)(VDD) |
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 70g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 98.84×57.06 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 4.0±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Glass) |
