Product Details:
|
Active Area: | 150.72×94.2 Mm | Outline: | 161.2×105.5×4.5 Mm |
---|---|---|---|
Surface: | Antiglare | Display Colors: | 262K (6-bit) , CIE1931 50% |
Response Time: | 25 (Typ.)(Tr+Td) | Frequency: | 60Hz |
Lamp Type: | WLED | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
High Light: | industrial lcd screen,industrial lcd panel |
161.2*105.5*4.5 mm 7.0 inch HannStar LCD Screen Replacements HSD070PWW1-A00
Panel Brand : | HannStar |
Panel Model : | HSD070PWW1-A00 |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 7.0 inch |
Resolution : | 1280(RGB)×800 , WXGA |
Display Mode : | HS-IPS, Normally Black, Transmissive |
Active Area : | 150.72×94.2 mm |
Outline : | 161.2×105.5×4.5 mm |
Surface : | Antiglare |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 800:1 (Typ.) |
Display Colors : | 262K (6-bit) , CIE1931 50% |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED |
Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
Input Voltage : | 3.3V (Typ.) |
Panel Size : | 7.0 inch |
Dot Resolution : | 1280(RGB)×800 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 215 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.03925×0.11775 mm (H×V) |
Pixel Pitch : | 0.11775×0.11775 mm (H×V) |
Weight : | 93g (Max.) |
Surface : | Antiglare |
Active Area : | 150.72×94.2 mm (H×V) |
Outline Dimension : | 161.2×105.5 mm (H×V) |
Outline Depth : | 2.35/4.5 (Typ./Max.) mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
Company Strength:
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

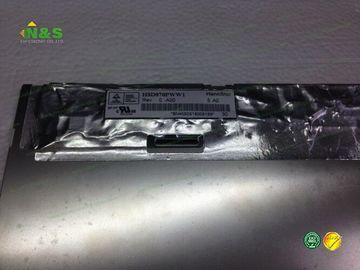

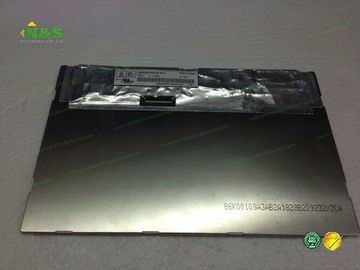

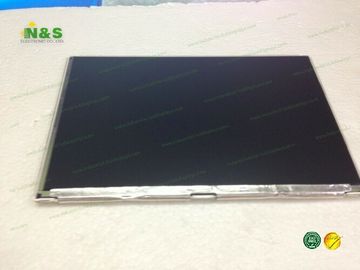

Details Pictures for HSD070PWW1-A00 LCD Display Panel
