Product Details:
|
| Dot Pitch: | 0.099×0.297 Mm (H×V) | Weight: | 1.10Kgs (Typ.) |
|---|---|---|---|
| Outline Depth: | 12.0 (Max.) Mm | Color Gamut: | 65% NTSC (CIE1931) |
| Viewing Angle: | 80/80/70/60 (Typ.)(CR≥10) (L/R/U/D) | Lamp Position: | Edge Light Type (Top And Bottom) |
| Signal Category: | LVDS | Model Alias: | G150XG01 V.1 |
| High Light: | auo display panel,auo lcd screen |
||
15 inch Wide temperature G150XG01 V1 AUO LCD Panel for Industrial
Product Specifications
SPECIFICATION:
| Luminance | 350 nits |
| Contrast Ratio | 700:01:00 |
| Color | 262K/16.2M |
| Color Saturation | 65%NTSC(CIE1931) |
| Response | 5.7/2.3 (Tr/Td) ms |
| Size | 15.0" |
| Resolution | 1024×768 |
| Resolution Name | XGA |
| Display scale | 4:03 |
| Operation Temperature | -30 °C ~ 85 °C |
| Operation Humidity | 8% ~ 90% |
| Storage Temperature | -30°C ~ 85°C |
| Storage Humidity | 8% ~ 90% |
Main Products:
1. AUO LCD Panel
2. Innolux LCD Panel
3. Tianma LCD Displays
4. Samsung LCD Panel
5. Chimei LCD Screen
6. Innolux LCD Display
7. Hitachi LCD Panel
8. NEC LCD Screen Replacement
9. Sharp LCD Screen
10. TFT LCD Module
11. Industrial LCD Displays
Optical and Electronics Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 65% NTSC (CIE1931) |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Power Consumption : | 8.9W (Typ.) |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

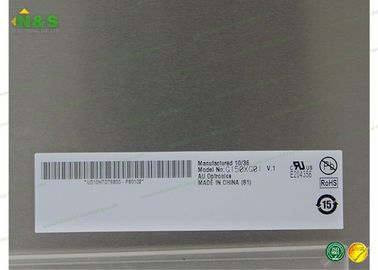

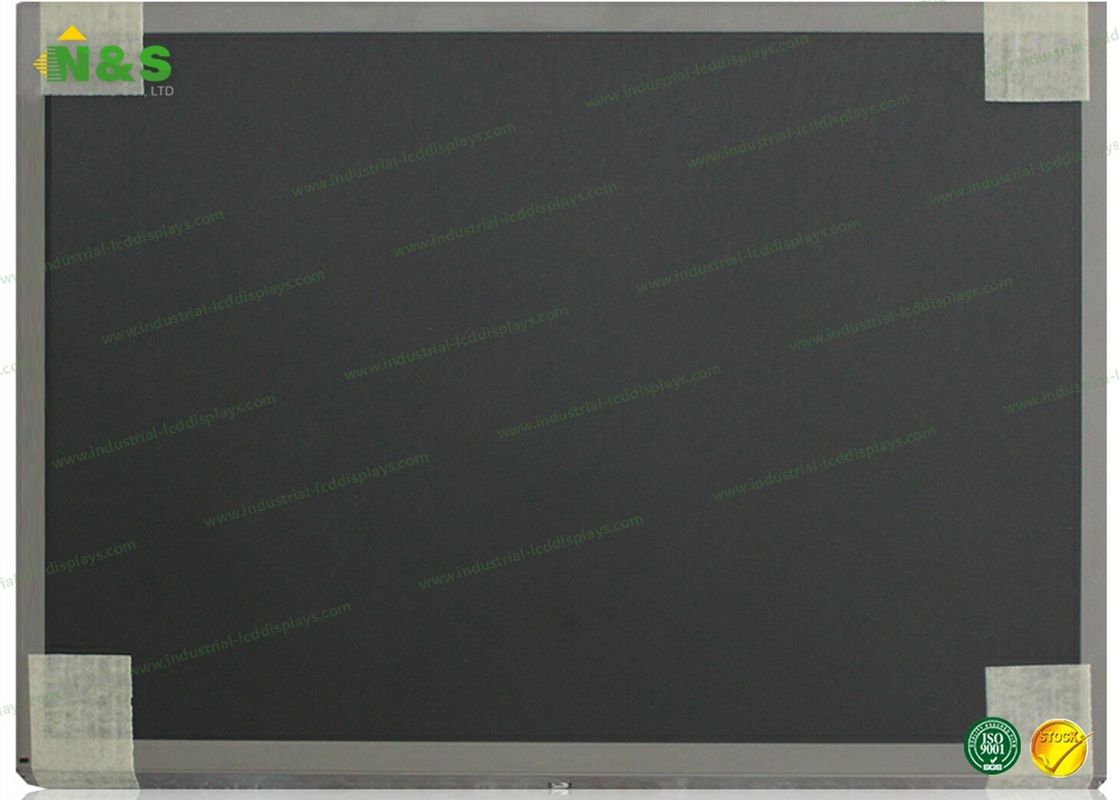

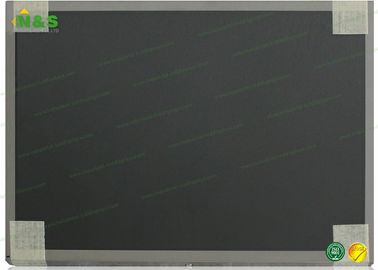

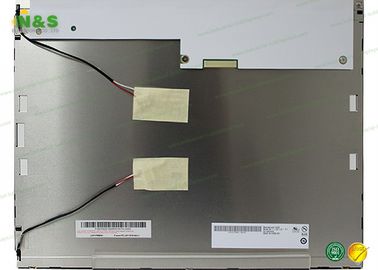

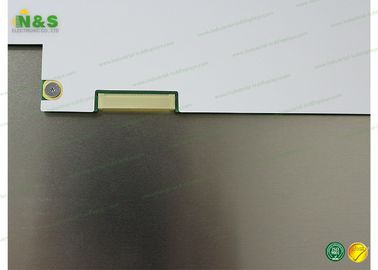

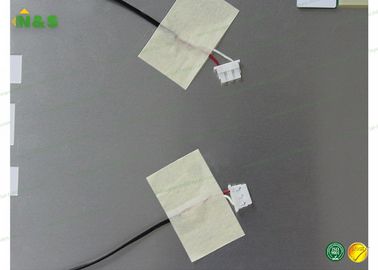

Product Picture for G150XG01 V1
