Product Details:
|
| Operating Temperature: | -30 ~ 70 °C | Storage Temperature: | -40 ~ 80 °C |
|---|---|---|---|
| Panel Size: | 15.0 Inch | Resolution: | 1024(RGB)×768 (XGA) |
| Aspect Ratio: | 4:3 (H:V) | Active Area: | 304.128×228.096 Mm (H×V) |
| Outline Depth: | 13.85±0.5 Mm | Holes & Brackets: | Side Mounting Holes (4-M3) On Left, Right Bezel |
| High Light: | industrial touch screen display,industrial lcd screen |
||
15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays
CMO G150X1-L02 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Response Time : 8/17 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White Variation : 1.25/1.40 (Typ./Max.)(9 points)
Our Service
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products.
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
* All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.

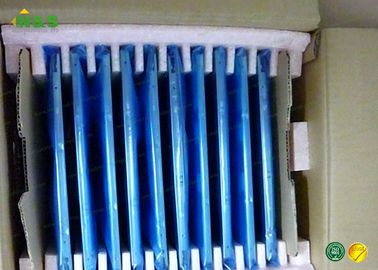

Packaging & Delivery
Packaging Details:
Delivery Detail: 1-3 Working Days
Backlight System
| Lamp Position | Edge light type (Top and Bottom) | |||||
| Lamp Type | CCFL | |||||
| Lamp Amount | 2 pcs | |||||
| Lamp Shape | Straight | |||||
| Lamp Life Time | 50K(Min.) (Hours) | |||||
| Lamp Voltage | 580±58 | |||||
| Lamp Current | 2.0/8.0/8.5mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency | 40/80KHz (Min./Max.) | |||||
| Lamps Power Consumption | 9.28W (Typ.) | |||||
| Interface Type | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Lamp Driver Board | No | |||||

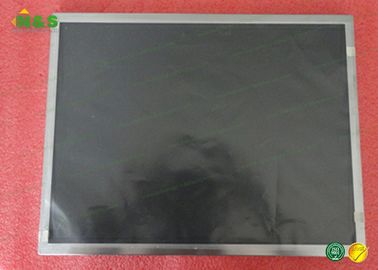

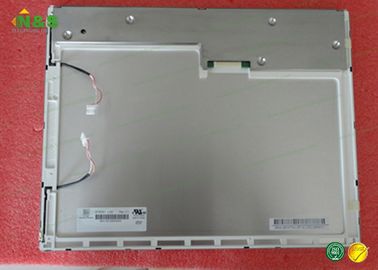

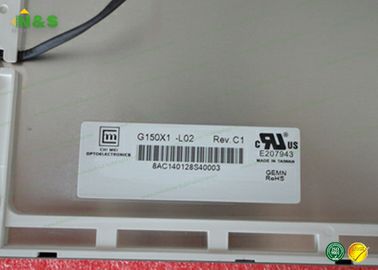

Product CMO G150X1-L02 Image
