Product Details:
|
| Panel Model: | G150X1-L01 | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Weight: | 1.10Kgs (Max.) | Outline Depth: | 13.85±0.5 Mm |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness: | 450 Cd/m² (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
15'' Twin Light Lamp Industrial LCD Displays , High Brightness LCD Panel G150X1-L01
Our Advantage:
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service:
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Technical Specifications
|
Operating Temperature : |
-30 ~ 70 °C |
|
Storage Temperature : |
-40 ~ 80 °C |
|
Dot Resolution : |
1024(RGB)×768 (XGA) |
|
Pixel Density : |
85 PPI |
|
Aspect Ratio : |
4:3 (H:V) |
|
Dot Pitch : |
0.099×0.297 mm (H×V) |
|
Pixel Pitch : |
0.297×0.297 mm (H×V) |
|
Weight : |
1.10Kgs (Max.) |
|
Active Area : |
304.128×228.096 mm (H×V) |
|
Bezel Area : |
307.4×231.3 mm (H×V) |
|
Outline Dimension : |
326.5×253.5 mm (H×V) |
|
Outline Depth : |
13.85±0.5 mm |
|
Brightness : |
450 cd/m² (Typ.) |
|
Contrast Ratio : |
700 : 1 (Typ.) (Transmissive) |
|
Display Color : |
16.2M (6-bit + FRC) |
|
Response Time : |
8/17 (Typ.)(Tr/Td) |
|
Viewing Angle : |
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
|
White Variation : |
1.25/1.40 (Typ./Max.)(9 points) |
|
Vertical Frequency : |
60Hz |
CMO G150X1-L01 Backlight System
|
Lamp Position |
Edge light type (Top and Bottom) |
|||||
|
Lamp Type |
CCFL |
|||||
|
Lamp Amount |
2 pcs |
|||||
|
Lamp Shape |
Straight |
|||||
|
Lamp Life Time |
50K(Min.) (Hours) |
|||||
|
Lamp Voltage |
520/580/638V (Min./Typ./Max.) |
|||||
|
Lamp Current |
2.0/8.0/8.5mA (Min./Typ./Max.) |
|||||
|
Lamp Operating Frequency |
40/80KHz (Min./Max.) |
|||||
|
Lamps Power Consumption |
9.28W (Typ.) |
|||||
|
Interface Type |
Connector |
|||||
|
Backlight Interface |
Brand |
Model | Pin Pitch | Pins | Amount | Configuration |
|
JST |
BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
|
Lamp Driver Board |
No |
|||||
Primary Competitive Advantages:

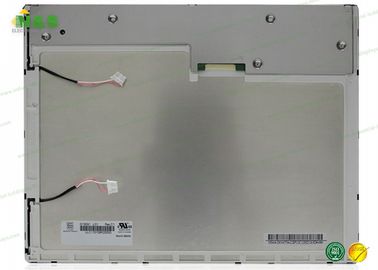

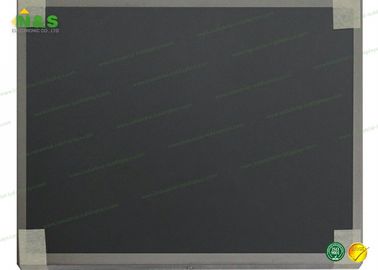

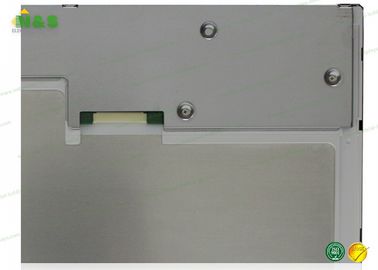

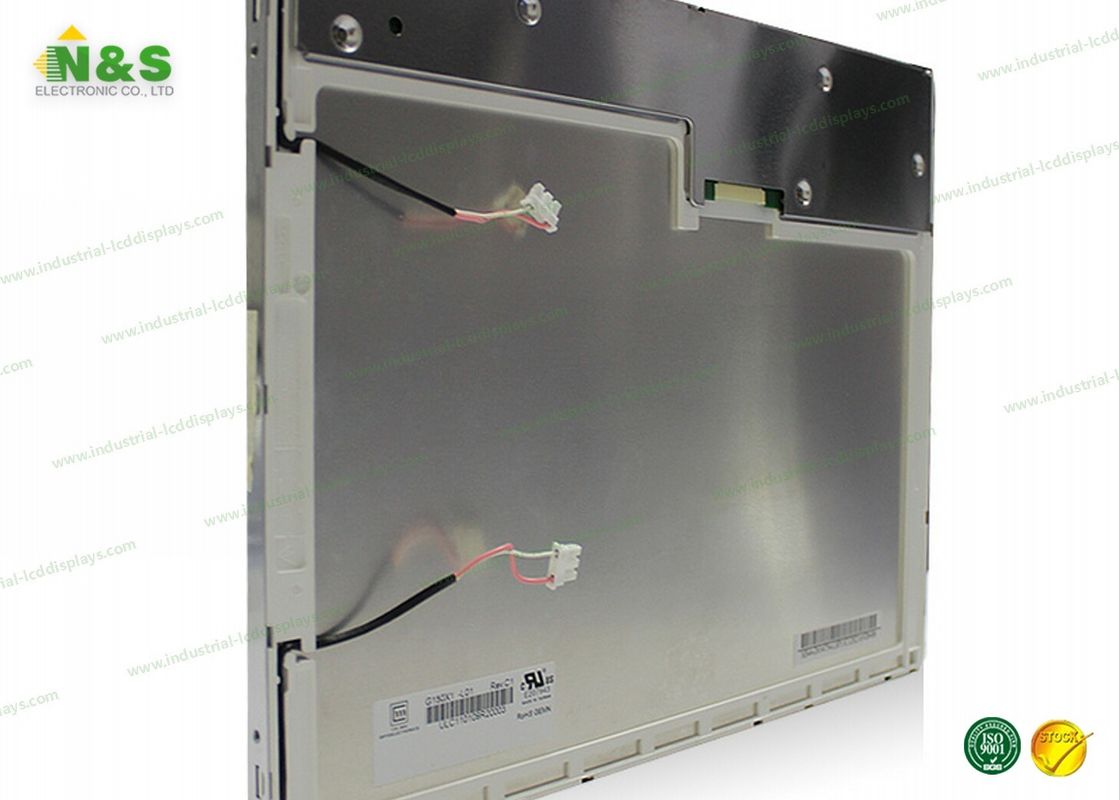

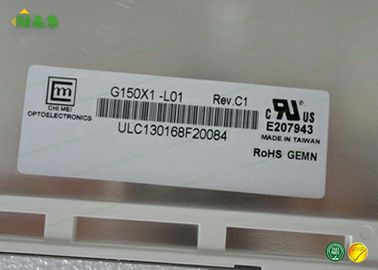

Product Show for CMO G150X1-L01
