Product Details:
|
| Aspect Ratio: | 4:3 (H:V) | Weight: | 370g (Typ.) |
|---|---|---|---|
| Holes & Brackets: | Face Mounting Holes (2-Φ3.5, 2-R1.75) On Left, Right Bezel | Pixel Configuration: | RGB Vertical Stripe |
| Dot Resolution: | 800(RGB)×600 (SVGA) | Outline Depth: | 8.5 (Max.) Mm |
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) | Vertical Frequency: | 60Hz |
| High Light: | auo display panel,auo lcd display |
||
G104SN02 V3 lcd display module Antiglare / Hard coating ( 3H ) possess Surface
Product Features:
Model: G104SN02 V3
| Specifications | Name | 10.4 inch AUO LCD Panel G104SN02 V3 |
| Panel Model | G104SN02 V3 | |
| Size | 10.4 inch | |
| Type | a-Si TFT-LCD | |
| Resolution | 800*600 | |
| Aspect Ratio | 4:3(W:H) | |
| Display Mode | TN, Normally White, Transmissive | |
| Brightness | 400cd/m2 | |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) | |
| Response Time | 10/20 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency | 60Hz | |
| Lamp Type | WLED | |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
AUO G104SN02 V3 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33 (Max.)(5 points) |

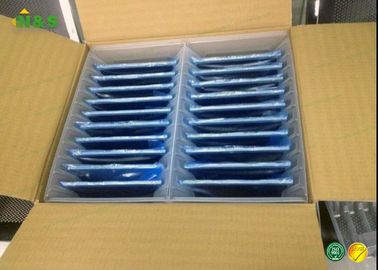

Packing:
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping:
Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
