ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline

ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline

    • ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline
    • ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline
  • ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline

    Product Details:

    Place of Origin: Japan,Korea
    Brand Name: Chimei LCD Panel
    Certification: ISO9001
    Model Number: ZJ070NA-01P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100 PCS PER DAY
    Contact Now
    Detailed Product Description
    Panel Model: ZJ070NA-01P Panel Size: 7.0 Inch
    Display Mode: TN, Normally White, Transmissive Outline: 165.75×105.39×5.1 Mm
    Surface: Glare (Haze 0%) Brightness: 500 Cd/m² (Typ.)
    Frequency: 60Hz Lamp Type: WLED

    ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline



    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Plastic Trays Inside

                 2. Layers of cartons

                 3. Fragile Sign on top.

                 4. Can be customized.



    Our Company Strength in LCD Screen Sourcing:

    1. ISO9001 certificated, Factory Direct Supplied

    2. Competitive Price and Short Lead-time

    3. Professional Team with Rich Experiences in LCD screen international trade communication.

    4. Small MOQ Support & Fast Response to Customers5. Long Product Life Time

    5.  1 Year warranty for our LCD screen replacements.



    CHIMEI INNOLUX ZJ070NA-01P General Features

    Panel Brand : CHIMEI INNOLUX
    Panel Model : ZJ070NA-01P
    Panel Type : a-Si TFT-LCD , Panel
    Panel Size : 7.0 inch
    Resolution : 1024(RGB)×600 , WSVGA
    Display Mode : TN, Normally White, Transmissive
    Active Area : 153.6×90 mm
    Outline : 165.75×105.39×5.1 mm
    Surface : Glare (Haze 0%)
    Brightness : 500 cd/m² (Typ.)
    Contrast Ratio : 700:1 (Typ.)
    Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 70%
    Response Time : 10/15 (Typ.)(Tr/Td)
    Viewing Angle : 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
    Frequency : 60Hz
    Lamp Type : WLED
    Signal Interface : LVDS (1 ch, 6/8-bit) , 40 pins
    Input Voltage : 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL)



    CHIMEI INNOLUX ZJ070NA-01P Optical Features

    Display Mode : TN, Normally White, Transmissive
    Brightness : 500 cd/m² (Typ.)
    Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
    Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut : 70% NTSC (CIE1931)
    Response Time : 10/15 (Typ.)(Tr/Td)
    Viewing Angle : 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction : 6 o'clock
    White color Chromaticity : Wx:0.310; Wy:0.330
    White Variation : 1.33/1.43 (Typ./Max.)(9 points)



    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    ED060SC3 E Ink 6.0" 800×600
    ED050SC1 E Ink 5.0" 800×600
    PD035QX7 E Ink 3.5" 320×240
    PW070DS6 E Ink 7.0" 480×234
    P1924QC1 E Ink 2.4" 240×320

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



    Details Pictures for Chimei LCD Panel ZJ070NA-01P

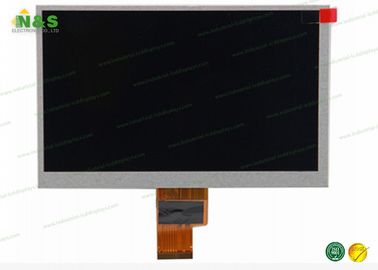

    ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline

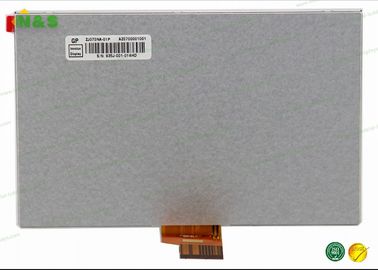

    ZJ070NA-01P Industrial Lcd Screen 153.6×90 mm Active Area 165.75×105.39×5.1 mm Outline
