Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 6.2 Inch |
|---|---|---|---|
| Surface: | Antiglare | Brightness: | 350 Cd/m² (Typ.) |
| Contrast Ratio: | 350:1 (Typ.) | Display Colors: | Full Color |
| Lamp Type: | 3S6P WLED | Signal Interface: | TFT Specific Analog RGB , 26 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
PVI Industrial LCD PW062XS9 6.2 inch 137.52×77.22 mm Active Area 154.4×92.6×6.2 mm Outline
Production Machinery
| Panel Brand : | PVI |
| Panel Model : | PW062XS9 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.2 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 137.52×77.22 mm |
| Outline : | 154.4×92.6×6.2 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | Full color |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/35/50 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S6P WLED |
| Signal Interface : | TFT Specific Analog RGB , 26 pins |
| Input Voltage : | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VDD1/VCC/VDD2/VGH/VGL) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
PVI PW062XS9 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/35/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

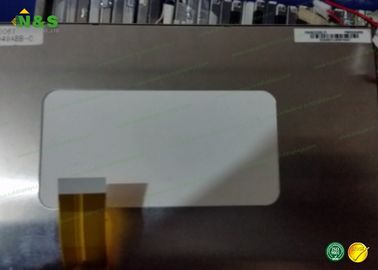

Details Pictures for PVI Industrial LCD PW062XS9
