Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Contrast Ratio: | 600:1 (Typ.) |
|---|---|---|---|
| Lamp Type: | 3S12P WLED Without Driver | Signal Interface: | LVDS (1 Ch, 8-bit) , 40 Pins |
| Aspect Ratio: | 16:10 (H:V) | Weight: | 215g (Typ.) |
| Landscape Or Portrait: | Landscape Type | Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
1280*800 CPT a-Si TFT-LCD CLAA101WH12 LE with Hard coating and High Contrast Ratio
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products.
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory.
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them.
* We also have international logistic center in Hongkong to support your batch
orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
3.The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Basic Information
| Panel Brand : | CPT |
| Panel Model : | CLAA101WH12 LE |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 216.96×135.6 mm |
| Outline : | 222.46×149.1×4.96 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
Optical Features
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 4:30 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33/1.43 (Typ./Max.)(13 points) |
Our Primary Competitive Advantages:
Product Picture for CLAA101WH12 LE

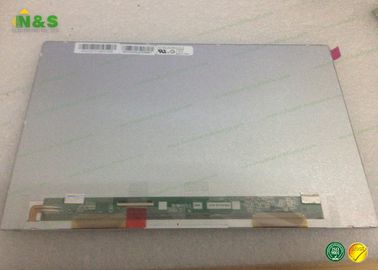

Positive Picture

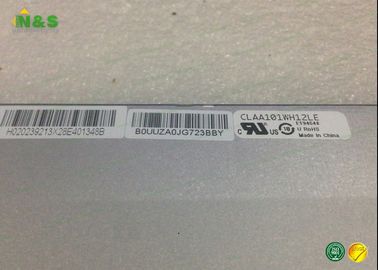

Tabs Picture
