Product Details:
|
| Pixel Density: | 116 PPI | Surface: | Antiglare, Hard Coating (3H) |
|---|---|---|---|
| Outline Depth: | 6.4/7.0 (Typ./Max.) Mm | Brightness: | 450 Cd/m² (Typ.) |
| Vertical Frequency: | 60Hz | Total Power Consumption: | 2.27W (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
176.64×99.36 mm Active Area Industrial LCD Displays CLAA080LJ01CW CPT
Technical Specifications
| Operating Temperature : | -20 ~ 70 °C |
| Storage Temperature : | -30 ~ 80 °C |
| Vibration Resistance : | 2.9G (28.4 m/s²) |
| Dot Pitch : | 0.0736×0.2070 mm (H×V) |
| Pixel Pitch : | 0.2208×0.2070 mm (H×V) |
| Weight : | 220g (Max.) |
| Active Area : | 176.64×99.36 mm (H×V) |
| Bezel Area : | 180.1×103.4 mm (H×V) |
| Outline Dimension : | 192.8×116.9 mm (H×V) |
| Outline Depth : | 6.4/7.0 (Typ./Max.) mm |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products;
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
*All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail:
1-3 Working Days
CPT CLAA080LJ01CW Signal Interface
Signal Category : TTL
Signal Class : TTL (1 ch, 6/8-bit)
Input Voltage for Panel : 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VDDG/VEEG)
Input Current for Panel : 10/30/0.5/0.5mA (Typ.)(IDVDD/IAVDD/IVDDG/IVEEG)
Panel Power Consumption : 321/396mW (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| CLAD015GA01 CXA | CPT | 1.5" | 480×240 |
| CLAN101FP05 XG | CPT | 10.1" | 1920×1200 |
| CLAG101WH11 LXA | CPT | 10.1" | 1280×800 |
| CLAF055WB42 TXX | CPT | 5.5" | 720×1280 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| CLAN070NJ01 CW | CPT | 7.0" | 1024×600 |
| CLAG070NQ01 | CPT | 7.0" | 1024×600 |
| CLAF050WG41 TXX | CPT | 5.0" | 720×1280 |

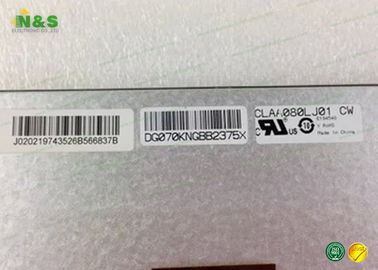

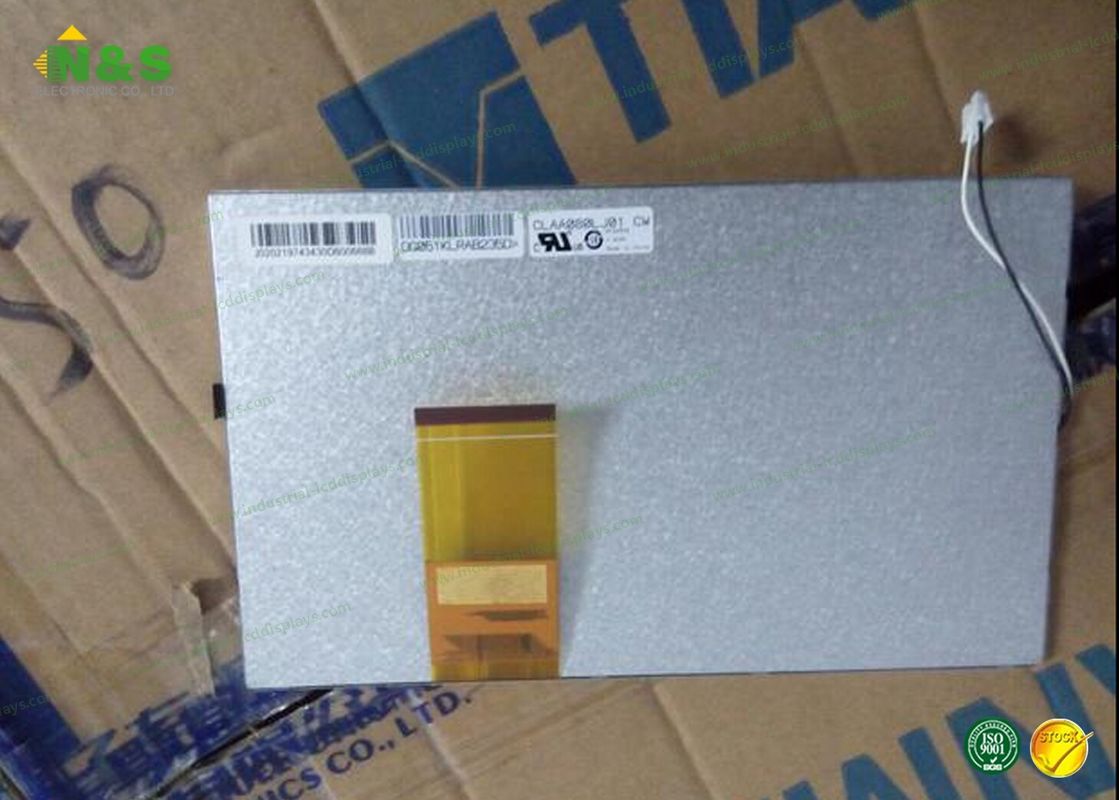

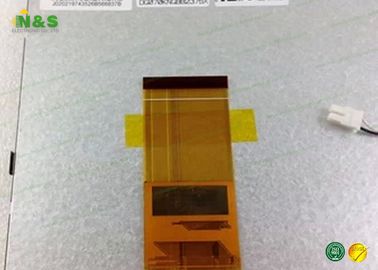

Details Pictures for Industrial LCD Displays CLAA080LJ01CW
