Product Details:
|
| Active Area: | 152.4×91.44 Mm | Outline: | 164×103×5.4 Mm |
|---|---|---|---|
| Surface: | Antiglare | Display Colors: | 16.7M (8-bit) |
| Response Time: | 12/18 (Typ.)(Tr/Td) | Viewing Angle: | 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type: | 3S7P WLED | Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 60 Pins |
| High Light: | auo display panel,auo lcd display |
||
AUO LCD Panel A070VW04 V0 7.0 inch 152.4×91.44 mm Active Area 164×103×5.4 mm Outline
AUO A070VW04 V0 General Features
| Panel Brand : | AUO |
| Panel Model : | A070VW04 V0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 164×103×5.4 mm |
| Surface : | Antiglare |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S7P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 60 pins |
| Input Voltage : | 3.3/11/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
AUO A070VW04 V0 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 153.5±14g |
| Surface : | Antiglare |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 154.4×93.44 mm (H×V) |
| Outline Dimension : | 164×103 mm (H×V) |
| Outline Depth : | 5.1±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

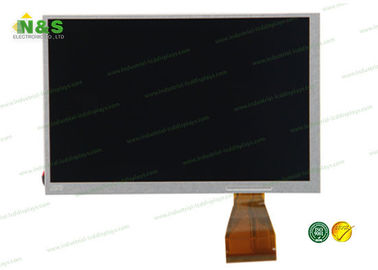

Details Pictures for AUO LCD Panel A070VW04 V0
