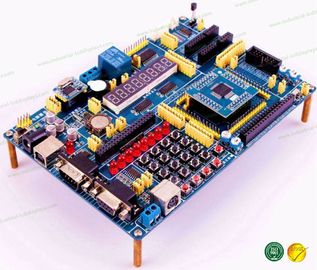

14 - Pin MSP430F149-DEV2 Microcontroller Development Boards Supporting The Latest Development Software

14 -pin MSP430F149-DEV2 MSP430F149 Microcontroller Development Boards USB BSL

Detailed Product Description

MSP430 development board MSP430F149 board 430 development board

Introduction
MSP430F149 microcontroller development board used as the CPU chip, based on the MSP430F149 chip power, integrated practical interface circuit and a variety of IC chips, with JTAG tools for MSP430 microcontroller can be easily integrated module of common experiments and development.
The MSP430 MCU MSP430 MCU development board based on the classical development of teaching materials "MSP430 series ultra-low power 16-bit Microcontroller Theory and Applications", the book provides a most complete test routines, allowing users to quickly conduct a variety of integrated MSP430 microcontroller function module development. Combined with the development of several practical examples, users can quickly grasp the essence of MSP430 MCU developers to develop their own production system.
Whether a novice or have some basic MSP430 MCU developers, can benefit from the development kit. If you are a novice, I suggest you from the "MSP430 series ultra-low power 16-bit Microcontroller Theory and Applications" began reading the first chapter, while reading while learning with the development board, and then to the back of comprehensive evelopment. If you have some foundation, I suggest you combine your own needs, selective learning and practice.

Module Introduction
·is a set of enabling users to Mastering the MSP430 microcontroller development board;
·to provide supporting documentation development and simulation diagrams;
·supporting the latest development software, fully functional version of IAR3.42;
·supporting the provision of the classic textbook "MSP430 series ultra-low power 16-bit Microcontroller Theory and Applications";
·supporting almost all types of MSP430 microcontroller provides all the peripheral modules use the source code;
·supporting virtually all types of MSP430 microcontroller device data sheet;
·supporting all MSP430 MCU series offers the user manual;
·MSP430F149 microcontroller board will have all the IO standard IDC10 outlet leads through a user-friendly according to their needs rapid secondary

Development Board Resource Description :
[1]. Onboard chip MSP430F149
[2] Integrated USB type BSL programmer ( or other board conduct their own bsl programming )
[3] . Provide 32.768KHZ and 8MHZ Two Crystal Connection
[4] . Using USB powered and program download , quality capacitor filter
[5] . Using a standard JTAG interface ( 14 -pin ) , support for hardware emulation .
[6] All IO ports ( including AD power, etc. ) are drawn ( not welded pin can be up or down their own welding ) .
[7] . 4 color LED all the way to pull , you can take this observation program running.
[8] . 2 quality independent keys.
[9] . Onboard manual reset circuit .
[10] . Onboard buzzer circuit , do musical experiments.
[11] . Provide NRF24L01 + wireless module interface .
[12] . Board integrated USB -to-serial functions.
[13] . Provides 3.3v and 5v power supply pin out .
