Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309

Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309

    • Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309
    • Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309
    • Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309
  • Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309

    Product Details:

    Place of Origin: Taiwan
    Brand Name: Chimei
    Certification: ISO9001
    Model Number: LW700AT9309

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 2-3 Working Days after order confirmation
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100 PCS Per Day
    Contact Now
    Detailed Product Description
    Resolution: 800(RGB)×600 , SVGA Panel Size: 7.0 Inch
    Surface: Antiglare Display Colors: 262K (6-bit) , CIE1931 45%
    Frequency: 60Hz

    Chimei LCD Panel ,7.0inch LW700AT9309 Normally White High Brightness LCD Panel



    Product General Features:



    <<

    Panel Size : 7.0 inch
    Dot Resolution : 800(RGB)×480 (WVGA)
    Pixel Configuration : RGB Vertical Stripe
    Pixel Density : 133 PPI
    Aspect Ratio : 15:9 (H:V)
    Form Factor : Flat Rectangle Display
    Dot Pitch : 0.0635×0.1905 mm (H×V)
    Pixel Pitch : 0.1905×0.1905 mm (H×V)
    Weight : TBD
    Surface : Antiglare
    Active Area : 152.4×91.44 mm (H×V)
    Bezel Area : 155.30×94.30 mm (H×V)
    Outline Dimension : 165×104.44 mm (H×V)
    Outline Depth : 5.36/5.9 (Typ./Max.) mm
    Holes & Brackets : Without
    Landscape or Portrait : Landscape type
    Touch Panel : Without







    Chimei LW700AT9309 Optical Features:

    <

    Display Mode : TN, Normally White, Transmissive
    Brightness : 350 cd/m² (Typ.)
    Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
    Display Color : 262K (6-bit)
    Color Gamut : 45% NTSC (CIE1931)
    Response Time : 5/11 (Typ.)(Tr/Td)
    Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction : 6 o'clock
    White color Chromaticity : Wx:0.299; Wy:0.328



          The LW700AT9309 LCD monitor offers exceptional image quality and dependable 24/7/365 operation. This monitor is ideally suited wherever you need detailed, high quality images in a rugged metal enclosure. The LW700AT9309 monitors have been successfully used with machine vision systems, in police cars, public transportation, manufacturing plants and studios. They can also be private-labelled with your company, name, logo and model number.





    Our Company Advantage in Industrial LCD Panel:



        N$S Electronics Co., LTD,  integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.





    Applications for Chimei LCD Panel , 7.0inch LW700AT9309:



    Mainly Used in Closed-Circuit Surveillance Systems

    Car Video, PC Operating Systems

    Vehicle Navigation Systems Supporting Display

    Can Also be Applied for Industrial Automation

    Medical Machine Equipments

    Electric Power

    Petrification

    Monitor

    Navigation

    POS, ATM and Instrumentation Display Systems

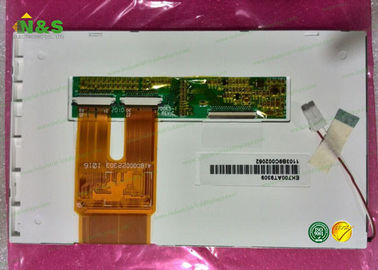

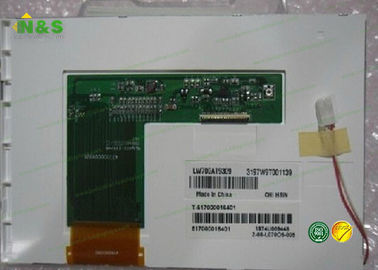

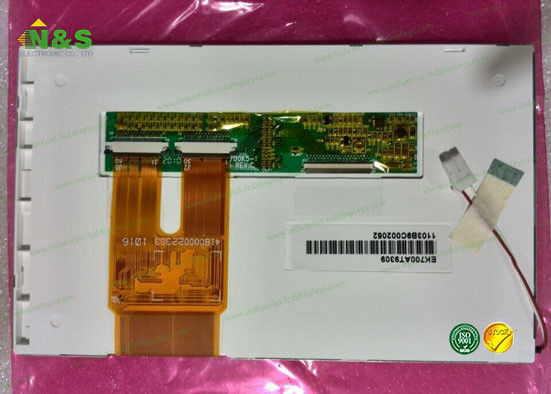

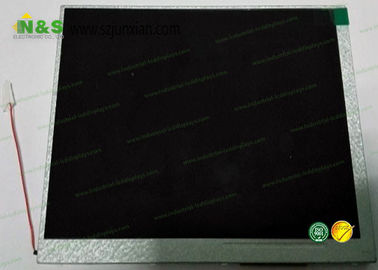

    Details Picture for the LW700AT9309 LCD Screen Display Panel:



    Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309



    Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309

    Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309
