Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1

Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1
Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1

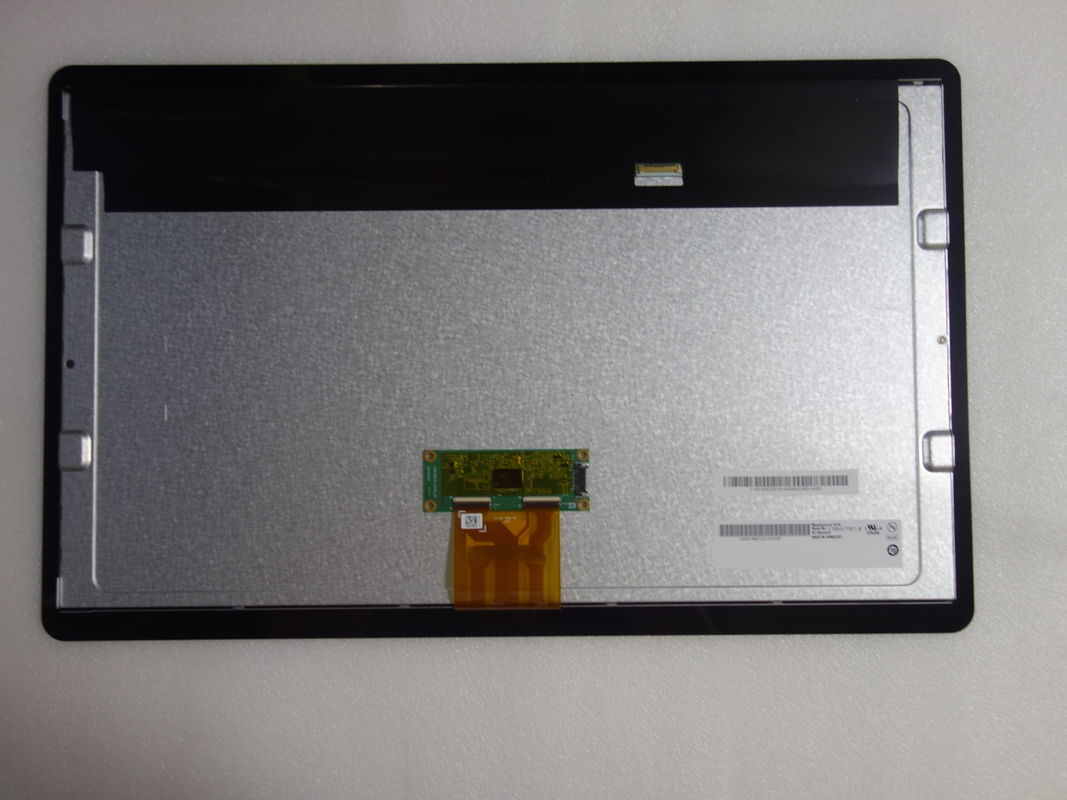

Large Image :  Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G185XTN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1

Description
Brand: AUO Model: G185XTN01.1
Diagonal Size: 18.5 Inch Type: A-Si TFT-LCD, LCM
Pixel FormaPixel Format: 1366(RGB)×768 [WXGA] 84PPIt1366(RGB)×768 [WXGA] 84PPI Touch Panel: Without
High Light:

AUO 18.5 Inch Lcd Panel

,

Anti Glare 18.5 Inch Lcd Panel

,

G185XTN01.1

Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1



G185XTN01.1 AUO 18.5" LCM 1366×768 Without Touchscreen And Industrial

AUO G185XTN01.1 Mechanical Details

Pixel Features :
Resolution
1366(RGB)×768, WXGA
Dot Pitch(mm)
0.100×0.300 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.300×0.300 (H×V) [84PPI]
Mechanical Size :
Active Area(mm)
409.8(H) × 230.4(V)
Bezel Area(mm)
413.4(H) × 234.0(V)
Outline Dim.(mm)
430.4(H) × 254.7(V)
Depth(mm)
10.6±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.44Kgs (Max.)
Treatment
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • Anti Glare AUO 18.5 Inch Lcd Panel LCM 1366×768 G185XTN01.1 0 Back to Top

AUO G185XTN01.1 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
8 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.43/1.54 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
