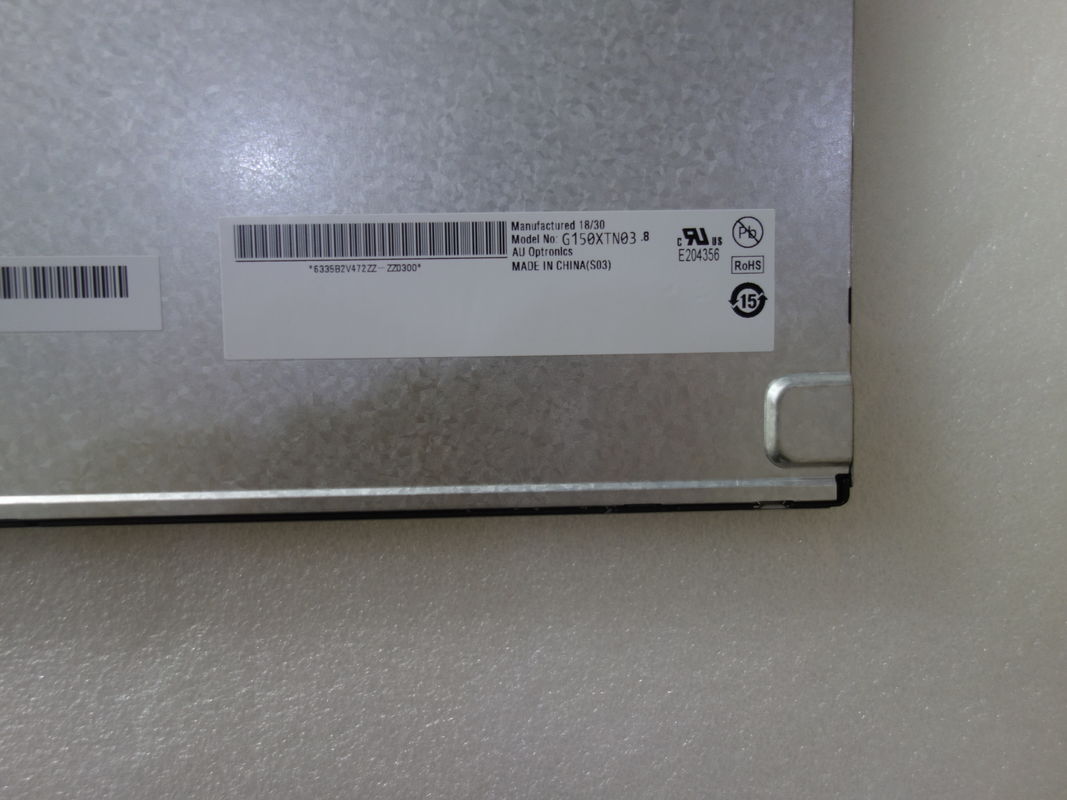

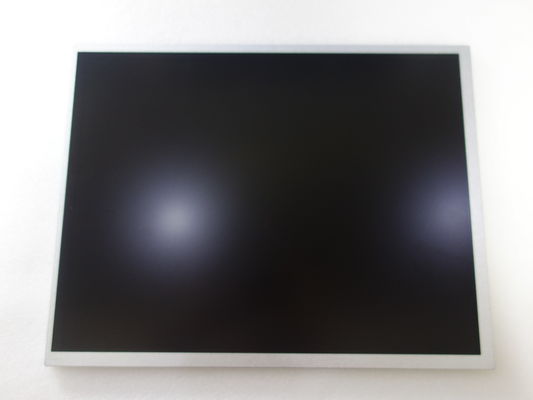

Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8
Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

Large Image :  Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G150XTN03.8
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

Description
Brand: AUO Model: G150XTN03.8
Diagonal Size: 15.0 Inch Type: A-Si TFT-LCD , LCM
Pixel Format: 1024(RGB)×768 [XGA] 85PPI Touch Panel: Without
High Light:

LCM Lcd Panel 15.6 Inch

,

Industrial AUO Lcd Panel

,

G150XTN03.8 Lcd Panel

Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8



G150XTN03.8 AUO 15" LCM 1024×768 Without Touchscreen And Industrial

AUO G150XTN03.8 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Display Area
304.128×228.096 mm (H×V)
Bezel Area
312.55×236.25 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth
6.3±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
720g (Max.)
Surface
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 0 Back to Top

AUO G150XTN03.8 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/70/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
5.7/3.2 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points) Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 1
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
84% coverage
Adobe RGB
63% coverage
DCI-P3
63% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
