Product Details:
|
| Brand: | AUO | Model: | G121STN02.0 |
|---|---|---|---|
| Diagonal Size: | 12.1 Inch | Type: | A-Si TFT-LCD, LCM |
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Touch Panel: | Without |
| High Light: | 800×600 AUO LCD Panel,82 PPI AUO LCD Panel,G121STN02.0 |
||

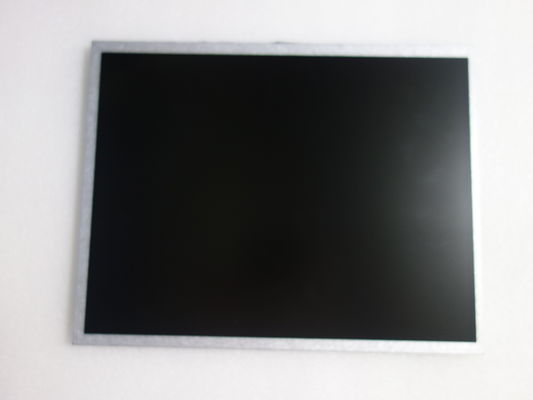

LCM 800×600 AUO LCD Panel G121STN02.0 With RGB Vertical Stripe
AUO G121STN02.0 Mechanical Details
|
Pixel Features : |
Pixel Format 800(RGB)×600, SVGA Dot Pitch 0.1025×0.3075 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.3075×0.3075 mm (H×V) [82PPI] |
|---|---|
|
Mechanical Size : |
Display Area 246×184.5 mm (H×V) Bezel Area 249×187.5 mm (H×V) Outline Dim. 260.5×203 mm (H×V) Outline Depth 6.1/9.0 (Typ./Max.) mm |
|
Outline Features : |
Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
|
|
Holes & Brackets : |
Side mounting holes (4-M2) on left, right bezel |
|
Other Features : |
Weight 600g (Max.) Surface Antiglare, Hard coating (3H) |
Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
We also have other industrial LCD panels, pls contact to us for the further information
| Panel Model | Brand | Size |
| T320HVN05.4 CELL | AUO | 31.5" |
| T215HVN01.2 CELL | AUO | 21.5" |
| B070ATN02.0 CELL | AUO | 7.0" |
| M238DAN01.3 CELL | AUO | 23.8" |
| B070AAN01.0 | AUO | 7.0" |
| M238DAN01.1 CELL | AUO | 23.8" |
| M270DAN02.0 CELL | AUO | 27.0" |
After-sale service:
1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. We offered training to our customer who includes operating and maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
