Product Details:
|
| Panel Brand: | WiseChip | Panel Model: | UG-6028GDEBF02 |
|---|---|---|---|
| Panel Size: | 1.7" | Panel Type: | PM-OLED, OLED |
| Resolution: | 160(RGB)×128, 121PPI | Pixel Format: | RGB Vertical Stripe |
| High Light: | Handheld CCFL Power Inverter,160×128 CCFL Power Inverter,UG-6028GDEBF02 |
||

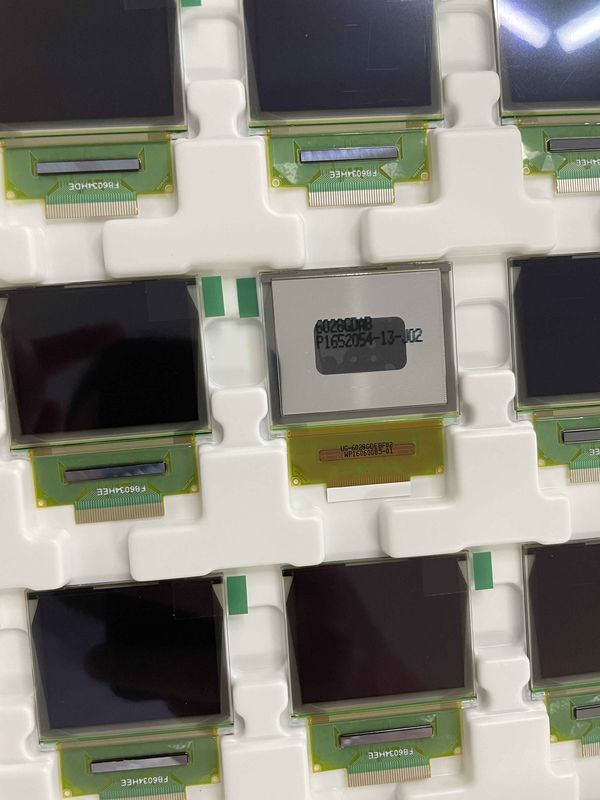

160×128 Handheld CCFL Power Inverter UG-6028GDEBF02 WiseChip
UG-6028GDEBF02 WiseChip 1.7" OLED 160×128 Handheld CCFL Power Inverter
| Basic Information : | Luminance | 75 cd/m² (Typ.) | Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 0.01 (ms) | |
| Viewing Angle | 80/80/80/80 (Min.) | Operating Mode | - | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | - | sRGB | 77% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
|
Pixel Features : |
Number of Pixel | 160(RGB)×128 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.07×0.21 mm | Pixel Pitch(W×H) | 0.21×0.21 mm [121PPI] | |
| Physical Size : | Active Viewing | 33.575(W)×26.864(H) mm | Overall Dim. | 39.9(W)×34(H) mm |
| Bezel Opening | 35.575(W)×28.864(H) mm | Overall Depth | 1.70 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | ||
| Other Detail : | Mass | 4.55g (Typ.) | Surface | - |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |
| TM046XYHP01 | Tianma | 4.7" | 540×960 |
| TL050VGXP01 | Tianma | 5.0" | 1080×1920 |
| TM060JYSP02 | Tianma | 6.0" | 720×1280 |
| TM045YYSP04 | Tianma | 4.5" | 480×854 |
| TM045YYSP02 | Tianma | 4.5" | 480×854 |
| TM016XYHP01 | Tianma | 1.6" | 256×320 |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
| TM050JYHP05 | Tianma | 5.0" | 720×1280 |
