86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1

86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1
86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1 86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1

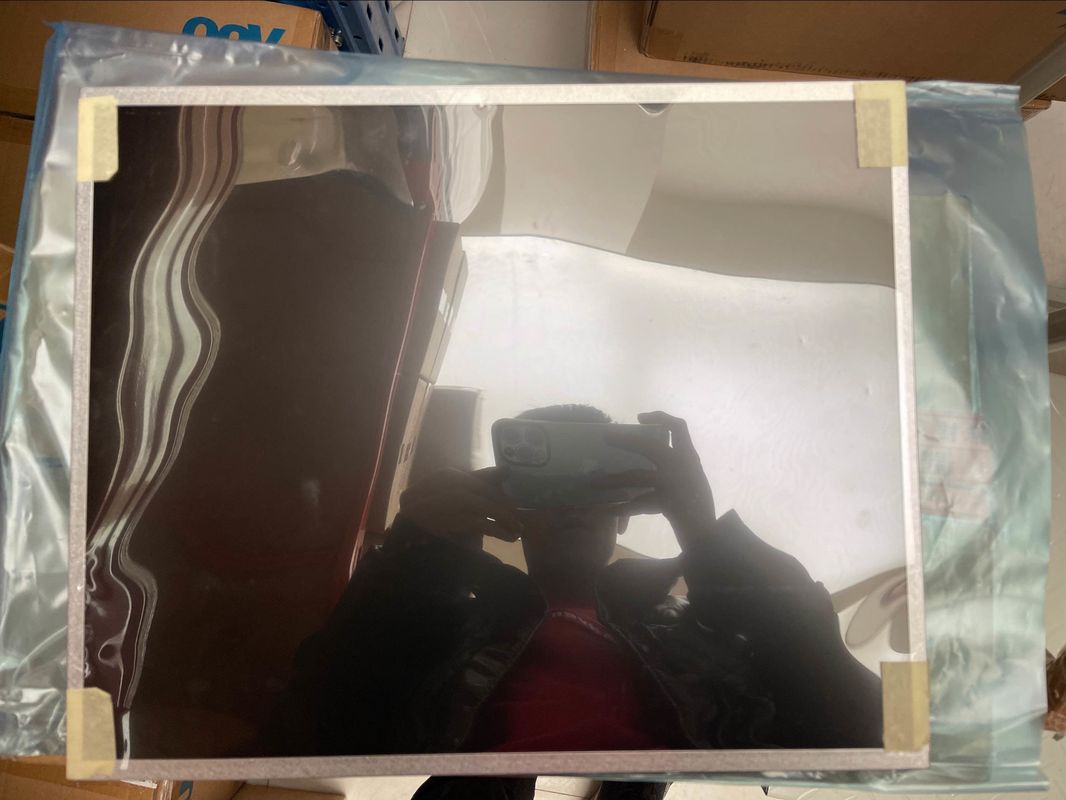

Large Image :  86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G190ETN03.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1

Description
Luminance: 350 Cd/m² (Typ.) Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Support Color: 16.7M 72% NTSC Operating Temperature: -20 ~ 70 °C
Contrast Ratio: 800:1 (Typ.) (TM) Display Mode: TN, Normally White, Transmissive
High Light:

G190ETN03.1 LCD Panel

,

86 PPI AUO LCD Panel

,

19 Inch AUO LCD Panel

86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1



G190ETN03.1 is a 19.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, without touch screen. On the basis of latest version datasheet Ver1.0 which was released out on 6 5 2014, G190ETN03.1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G190ETN03.1 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
22/3 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.340
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6402K
White Variation
1.25/1.33 (Typ./Max.)(13 points) 86PPI 19 Inch 1280×1024 Gaming TFT AUO LCD Panel G190ETN03.1 0
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G190ETN03.1 Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×1024, SXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.098×0.294 mm
Pixel Pitch(W×H)
0.294×0.294 mm [86PPI]
Physical Size :
Active Viewing
376.32(W)×301.056(H) mm
Overall Dim.
396(W)×324(H) mm
Bezel Opening
380.3(W)×305.1(H) mm
Overall Depth
11.7 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
-
Surface
Glare (Haze 0%), Hard coating (3H)



Below are our other LCD panels stock for your easy reference:



H497EAN01.0 AUO 5.0"
T320XVN02.C CELL AUO 31.5"
T320HVN05.8 CELL AUO 31.5"
T500HVN07.5 CELL AUO 50"
B070EAN02.0 CELL AUO 7.0"
M320QAN01.0 CELL AUO 32.0"
H546TAN02.0 AUO 5.5"
H598TAN01.0 AUO 6.0"
H546DAN03.3 AUO 5.5"
H497DAN02.0 AUO 5.0"
H495TAN01.1 AUO 5.0"
H496TAN01.0 AUO 5.0"



Application Of AUO LCD Panel G190ETN03.1

1. Medical Display

2. Self-service Terminals Display

3. Commercial Display

4. Handheld & PDA
