0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel

0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel
0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel 0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel

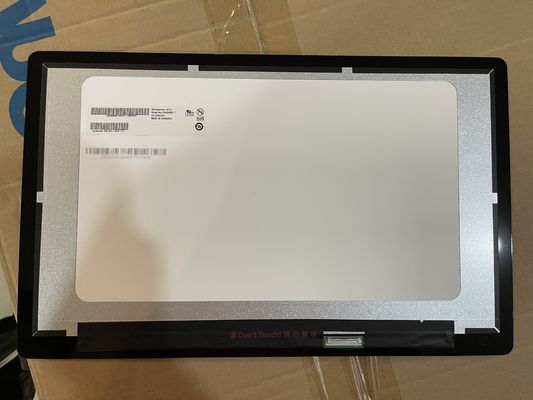

Large Image :  0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G156HAB01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel

Description
Operating Temperature: 0 ~ 50 °C Storage Temperature: -20 ~ 60 °C
Luminance: 300 Cd/m² (Typ.) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio: 800:1 (Typ.) (TM) Lamp Type: WLED , 30K Hours , With LED Driver
High Light:

15.6" AUO LCD Panel

,

G156HAB01.1

,

TFT LCD LCM Display Panel

1920×1080 15.6" G156HAB01.1 AUO Industrial TFT LCD LCM Display Panel



Description Of AUO LCD Panel

Now have 2 datasheets of G156HAB01.1 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Final Ver1.0 which was released out on 1 18 2019, G156HAB01.1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G156HAB01.1 Mechanical Features

Panel Size : 15.6 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.05975×0.17925 mm 0.17925×0.17925 mm [141PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
344.16×193.59 mm - 361×227 mm 4.9 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type Slim (PCBA Flat, T≤3.2mm)
Touchscreen : Touch Points TP Controller Signal Type Touch Tech
10 points With touch controller USB On-Cell Touch
Fixation : Without
Other Features : Panel Cover Weight Surface
With Cover Lens 620g (Max.) Hard coating (7H)

AUO G156HAB01.1 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) AHVA, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.2M (6-bit + FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
49% 68% 51%
DCI-P3 Coverage Rec.2020 Coverage Remarks
51% 37% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25/1.33 (Typ./Max.)(5 points) 0.17925mm 15.6" AUO LCD Panel G156HAB01.1 TFT LCD LCM Display Panel 0



We also have other industrial LCD panels, pls contact to us for the further information



H546DAN07.3 AUO 5.5"
M270HVN02.3 CELL AUO 27.0"
M270HVN02.2 CELL AUO 27.0"
M270HVN02.1 CELL AUO 27.0"
M270DTN01.0 CELL AUO 27.0"
T320HVN05.7 CELL AUO 31.5"
T320HVN05.4 CELL AUO 31.5"
T215HVN01.2 CELL AUO 21.5"
B070ATN02.0 CELL AUO 7.0"
M238DAN01.3 CELL AUO 23.8"
B070AAN01.0 AUO 7.0"
M238DAN01.1 CELL AUO 23.8"
M270DAN02.0 CELL AUO 27.0"
H598DAN03.0 AUO 6.0"
H546TAN02.3 AUO 5.5"
G173HW01 V0 CELL AUO 17.3"



Application Of AUO LCD Panel G156HAB01.1

1. Intelligent Display

2. Tablet PC

3. Self-service Terminals Display

4. Military Display



Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
