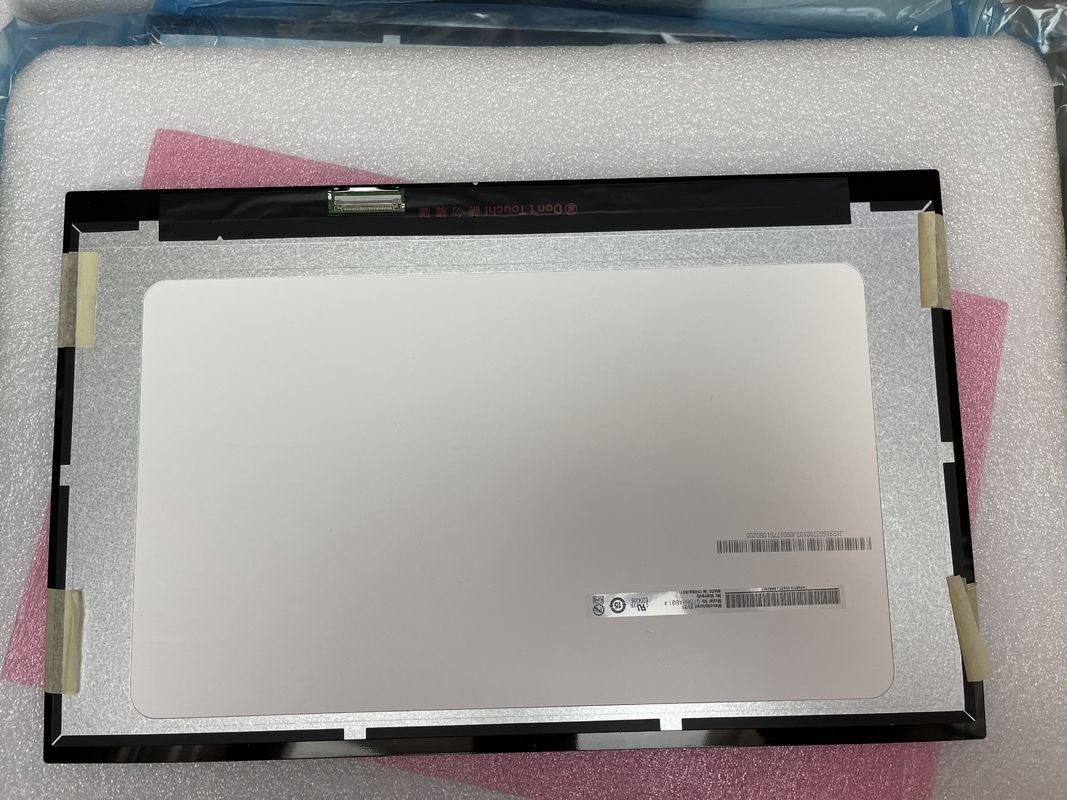

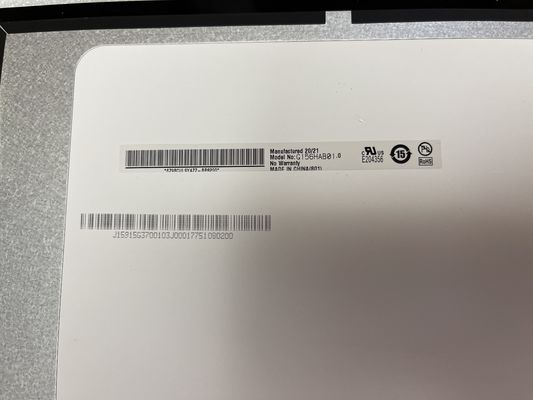

15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel

15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel
15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel 15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel

Large Image :  15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G156HAB01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel

Description
Brightness: 300 Cd/m² (Typ.) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Temp.: 0 ~ 50 °C Storage Temp.: -20 ~ 60 °C
Contrast Ratio: 800:1 (Typ.) (TM) Display Mode: AHVA, Normally Black, Transmissive
High Light:

AUO Tft Lcd Panel

,

G156HAB01.0 Lcd Panel

,

G156HAB01.0 Tft Panel

15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel



Description Of AUO LCD Panel

Now have 2 datasheets of G156HAB01.0 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Final Ver1.0 which was released out on 1 18 2019, G156HAB01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G156HAB01.0 Optical Details

Basic Information : Luminance 300 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) 15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel 0 Operating Mode AHVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.2M (6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(5 points) 15.6 Inch 1920×1080 G156HAB01.0 Industrial AUO Tft Lcd Panel 1
1931 Color Gamlt : NTSC Ratio 49% sRGB 68% coverage
Adobe RGB 51% coverage DCI-P3 51% coverage
Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G156HAB01.0 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.05975×0.17925 mm Pixel Pitch(W×H) 0.17925×0.17925 mm  [141PPI]
Physical Size : Active Viewing 344.16(W)×193.59(H) mm Overall Dim. 361(W)×227(H) mm
Bezel Opening - Overall Depth 4.9 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style Slim (PCBA Flat, T≤3.2mm)
Touchscreen : TP Controller With touch controller TP Interface USB
Touch Points 10 points TP Technology On-Cell Touch
Fixation : Without
Other Detail : Mass 620g (Max.) Surface Hard coating (7H)
Panel Cover With Cover Lens



We also have other industrial LCD panels, pls contact to us for the further information



H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO 7.9"
B080XAN03.2 AUO 7.9"
H499TAN05.0 AUO 5.0"
H520DAN01.1 AUO 5.2"
B116XAN05.0 CELL AUO 11.6"
H495TAN01.0 AUO 5.0"
H598QAN02.1 AUO 6.0"
M185XTN01.2 CELL AUO 18.5"
H598QAN01.0 AUO 6.0"
T430HVN01.2 CELL AUO 43"
H495TAN01.2 AUO 5.0"
T650QVN04.5 CELL AUO 65"
M320DVN01.0 CELL AUO 32.0"
M238HVN01.0 CELL AUO 23.8"
M238HVN01.2 CELL AUO 23.8"
T320XVN02.F CELL AUO 31.5"





Application Of AUO LCD Panel G156HAB01.0

1. Military Display
2. Medical Display

3. Intelligent Display

4. Industrial Display



FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.









Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.
