G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver

G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver
G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver

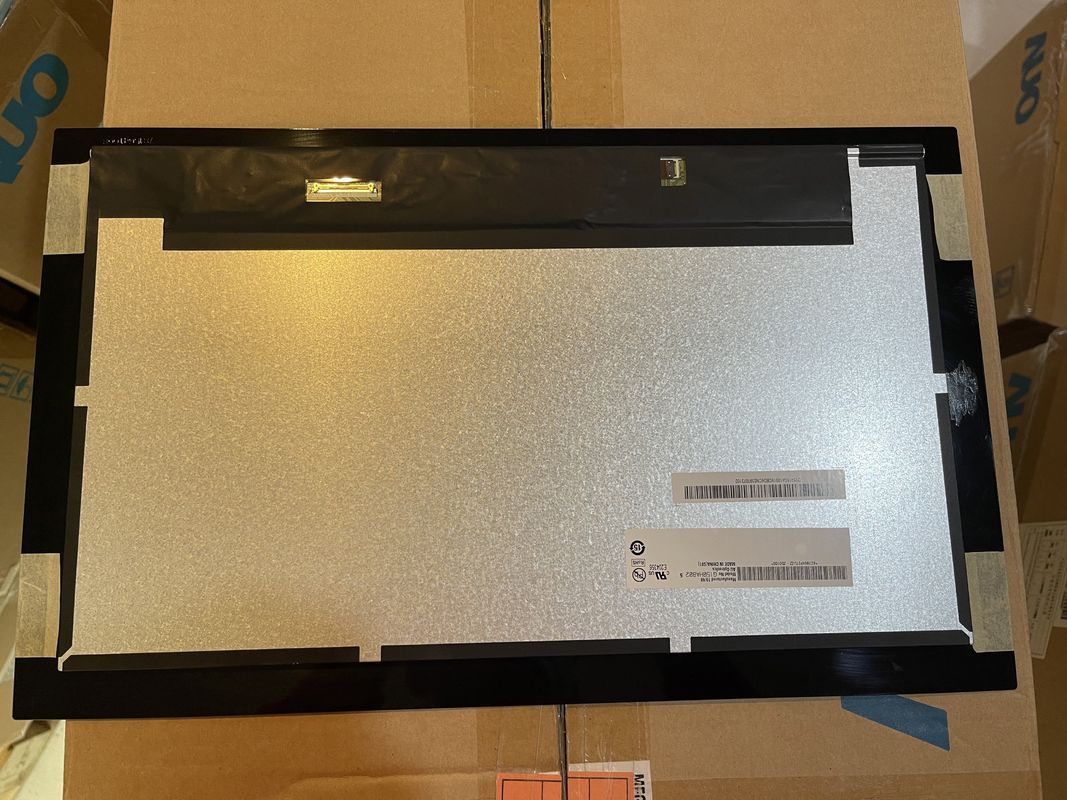

Large Image :  G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G156HAB02.5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver

Description
Operating Temperature: 0 ~ 50 °C Storage Temperature: -20 ~ 60 °C
Luminance: 400 Cd/m² (Typ.) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio: 800:1 (Typ.) (TM) Light Source: WLED , 50K Hours , With LED Driver
High Light:

WLED 15 Inch Tft Display

,

AUO 15 Inch Tft Display

,

G156HAB02.5 Tft Display

G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver



Description Of AUO LCD Panel

Now have 1 datasheets of G156HAB02.5 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Ver0.1 which was released out on 6 17 2019, G156HAB02.5 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G156HAB02.5 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
-
Outline Dim.(mm)
361(H) × 227(V)
Depth(mm)
6.0/8.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
10 points
Touch Panel
On-Cell Touch
TP Controller
With touch controller
Touch Signal
USB
Mounting :
Without
Other Spec :
Weight
860g (Max.)
Treatment
Hard coating (5H)
Panel Cover
With Cover Lens

AUO G156HAB02.5 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(5 points) G156HAB02.5 AUO WLED 15 Inch Tft Display 1920×1080 With LED Driver 0
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
