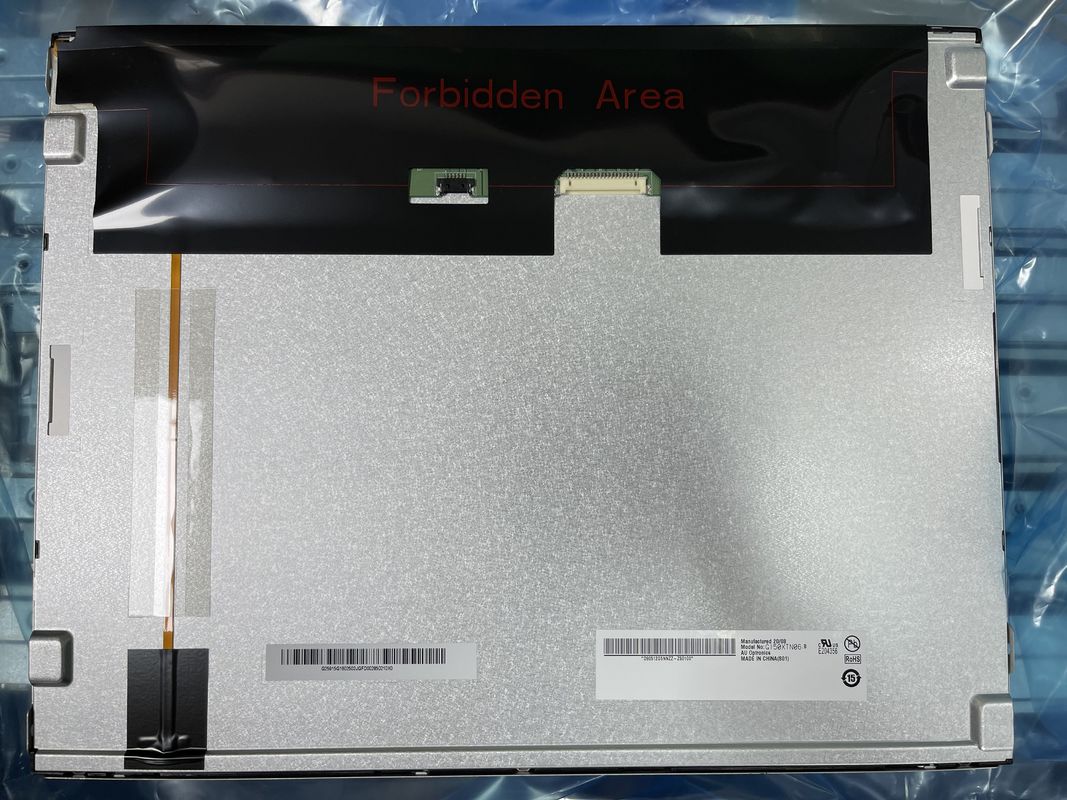

15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial

15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial
15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial 15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial

Large Image :  15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G150XTN06.B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial

Description
Operating Temp.: -30 ~ 70 °C Storage Temp.: -30 ~ 80 °C
Contrast Ratio: 800:1 (Typ.) (TM) Viewing Angle: 80/80/70/80 (Typ.)(CR≥10)
Luminance: 800 Cd/m² (Typ.) Work Mode: TN, Normally White, Transmissive
High Light:

G150XTN06.B

,

1024×768 AUO LCD Panel

,

6485K Industrial AUO LCD Panel

15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial



Description Of AUO LCD Panel
Now have 1 datasheets of G150XTN06.B released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Ver0.1 which was released out on 9 20 2018, G150XTN06.B supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G150XTN06.B Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
800 (Typ.) 80/80/70/80 (Typ.)(CR≥10) 5.7/2.3 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 800 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K/16.2M (6-bit / 6-bit + FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
60% 84% 63%
DCI-P3 Coverage Rec.2020 Coverage Remarks
63% 45% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.33 (Typ./max.)(9 points) 15 Inch 1024×768 G150XTN06.B AUO LCD Panel For Industrial 0
Performance : 3D Tech Sunlight Visibility Reflectance
- Sunlight Readable -

AUO G150XTN06.B Mechanical Features

Panel Size : 15.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1024(RGB)×768 [XGA] RGB Vertical Stripe 0.297×0.297 [85PPI] 0.099×0.297
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
304.128(H) × 228.096(V) 311.9(H) × 236.85(V) 326.5(H) × 253.5(V) 10.0 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Detail : Weight Panel Cover Treatment
1.00Kgs (Max.) - Antireflection





We also have other industrial LCD panels, pls contact to us for the further information



H572DAN01.2 AUO 5.7"
H598AAN01.0 AUO 6.0"
H497DAN01.1 AUO 5.0"
H650DAN01.0 AUO 6.4"
H572DAN01.0 AUO 5.7"
H546DAN01.2 AUO 5.5"
H499TAN03.0 AUO 5.0"
H572TAN01.0 AUO 5.7"
H466TAN02.3 AUO 4.7"
H446TAN03.1 AUO 4.5"
H446TAN03.0 AUO 4.5"
H546AAN01.0 AUO 5.5"
B070ATN01.0 CELL AUO 7.0"
A070SN02 V0 CELL AUO 7.0"



Application Of AUO LCD Panel G150XTN06.B

1.Tablet PC

2.Handheld & PDA

3.Intelligent Display

4.Self-service Terminals Display
