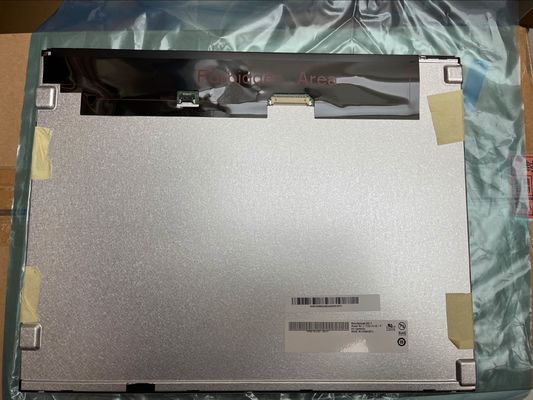

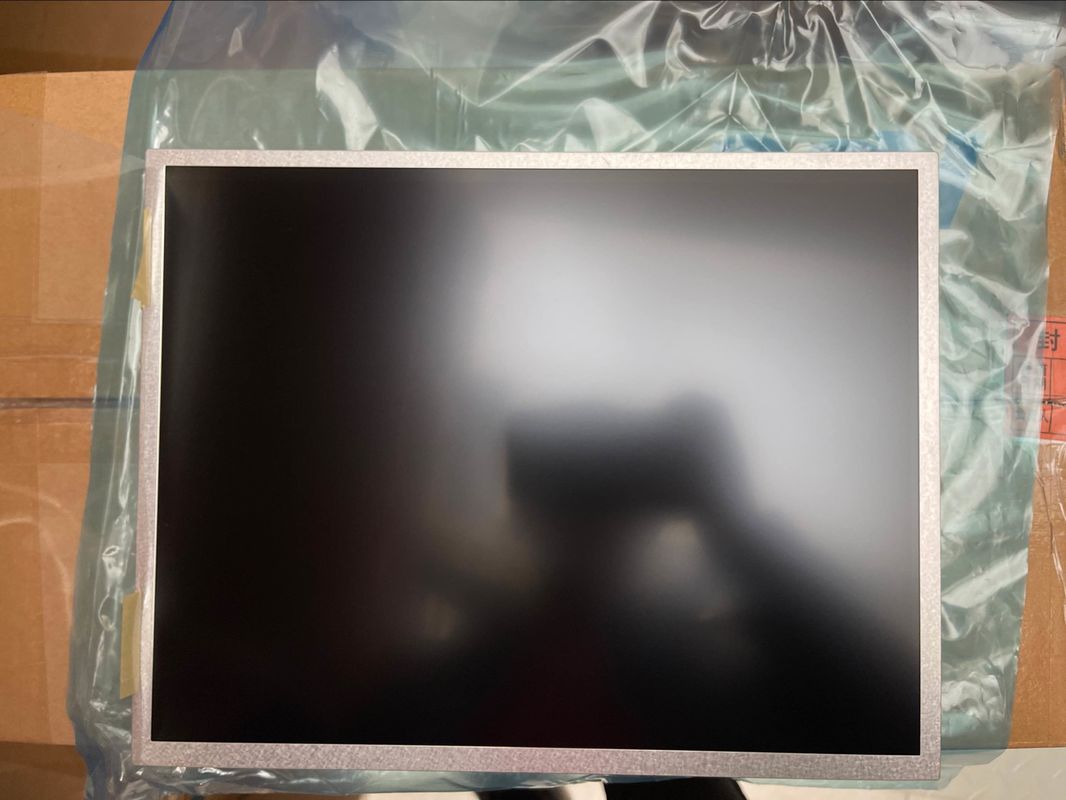

Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display

Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display
Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display

Large Image :  Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G150XAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display

Description
Operating Temp.: -20 ~ 70 °C Storage Temp.: -20 ~ 70 °C
Brightness: 350 Cd/m² (Typ.) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio: 1000:1 (Typ.) (TM) Display Mode: AHVA, Normally Black, Transmissive
Lamp Type: WLED , 50K Hours , With LED Driver Signal Interface: LVDS (1 Ch, 8-bit) , 20 Pins Connector
High Light:

G150XAN01.0

,

15 Inch Auo Lcd Display

,

6485K Auo Lcd Display

Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display



Description Of AUO LCD Panel

Now have 1 datasheets of G150XAN01.0 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Ver0.0 which was released out on 12 15 2017, G150XAN01.0 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G150XAN01.0 Optical Details

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display 0 Operating Mode AHVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.2M (6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points) Industrial 15 Inch 1024×768 G150XAN01.0 6485K Auo Lcd Display 1
1931 Color Gamlt : NTSC Ratio 60% sRGB 78% coverage
Adobe RGB 62% coverage DCI-P3 62% coverage
Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G150XAN01.0 Mechanical Details

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size : Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm
Bezel Opening 309.9(W)×236.3(H) mm Overall Depth 9.0 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 920g (Max.) Surface Antiglare, Hard coating (3H)



We also have other industrial LCD panels, pls contact to us for the further information





T650QVN04.5 CELL AUO 65"
M320DVN01.0 CELL AUO 32.0"
M238HVN01.0 CELL AUO 23.8"
M238HVN01.2 CELL AUO 23.8"
T320XVN02.F CELL AUO 31.5"
T430HVN01.6 CELL AUO 43"
B101EAN01.2 CELL AUO 10.1"
H497EAN01.0 AUO 5.0"
T320XVN02.C CELL AUO 31.5"
T320HVN05.8 CELL AUO 31.5"
T500HVN07.5 CELL AUO 50"
B070EAN02.0 CELL AUO 7.0"
M320QAN01.0 CELL AUO 32.0"
H546TAN02.0 AUO 5.5"
H598TAN01.0 AUO 6.0"
H546DAN03.3 AUO 5.5"
H497DAN02.0 AUO 5.0"
H495TAN01.1 AUO 5.0"
H496TAN01.0 AUO 5.0"



Application Of AUO LCD Panel G150XAN01.0

1. Industrial Display

2. Medical Display

3. Tablet PC

4. Self-service Terminals Display
