Product Details:
|
| Brand: | AUO | Model: | G057QN01 V2 |
|---|---|---|---|
| Diagonal Size: | 5.7 Inch | Type: | A-Si TFT-LCD , LCM |
| Luminance: | 800 Cd/m² (Typ.) | Interface Type: | CMOS (1 Ch, 6-bit) 33 Pins Connector |
| High Light: | G057QN01 V2,262K Outdoor LCD Panel,262K 320×240 LCD Panel |
||

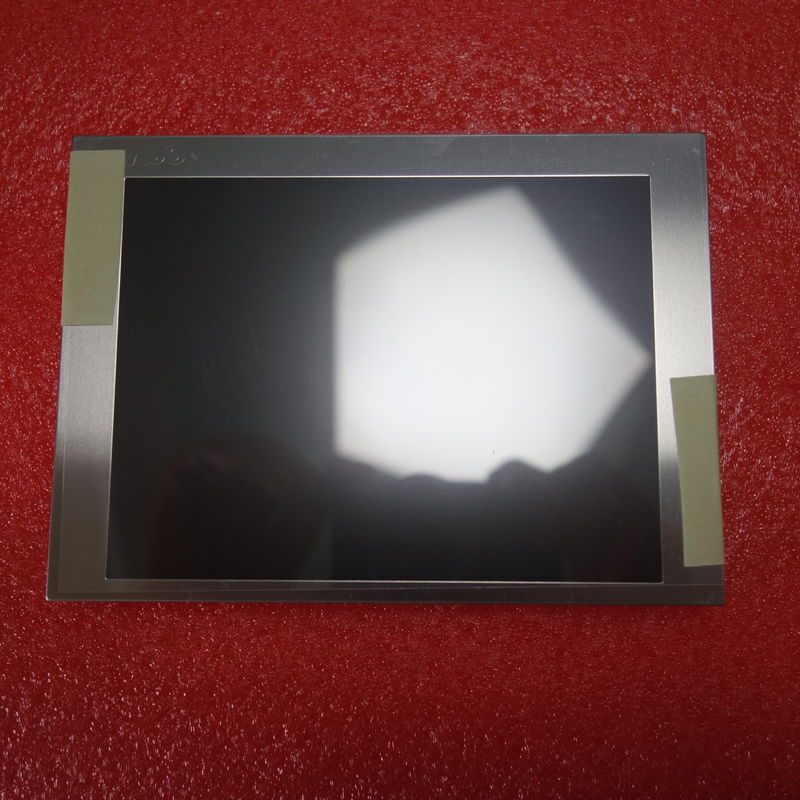

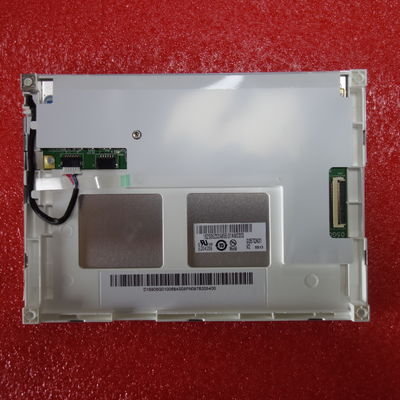

High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel
Description Of AUO LCD Panel
According to datasheet with version of Ver1.2 which was released out on 12 11 2014, G057QN01 V2 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150/165g (Typ./Max.).
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 15/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10)  |
Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 144(W)×104.6(H) mm |
| Bezel Opening | 118.2(W)×89.4(H) mm | Overall Depth | 12.3/12.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Rear mounting holes (4-Φ2.6) | |||
| Other Detail : | Mass | 150/165g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
