Product Details:
|
| Manufacturer: | AUO | Screen Size: | 21.5 Inch |
|---|---|---|---|
| Model Name: | G215HAN01.0 | Screen Type: | LCM , A-Si TFT-LCD |
| Luminance: | 400 Cd/m² (Typ.) | Treatment: | Antiglare, Hard Coating (3H) |
| Good View At: | Symmetry | Color Depth: | 16.7M 72% NTSC |
| Backlight: | 9S7P WLED , 50K Hours , With LED Driver | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | AUO Medical LCD Panel,LCM AUO Medical LCD Panel,G215HAN01.0 Medical LCD Panel |
||

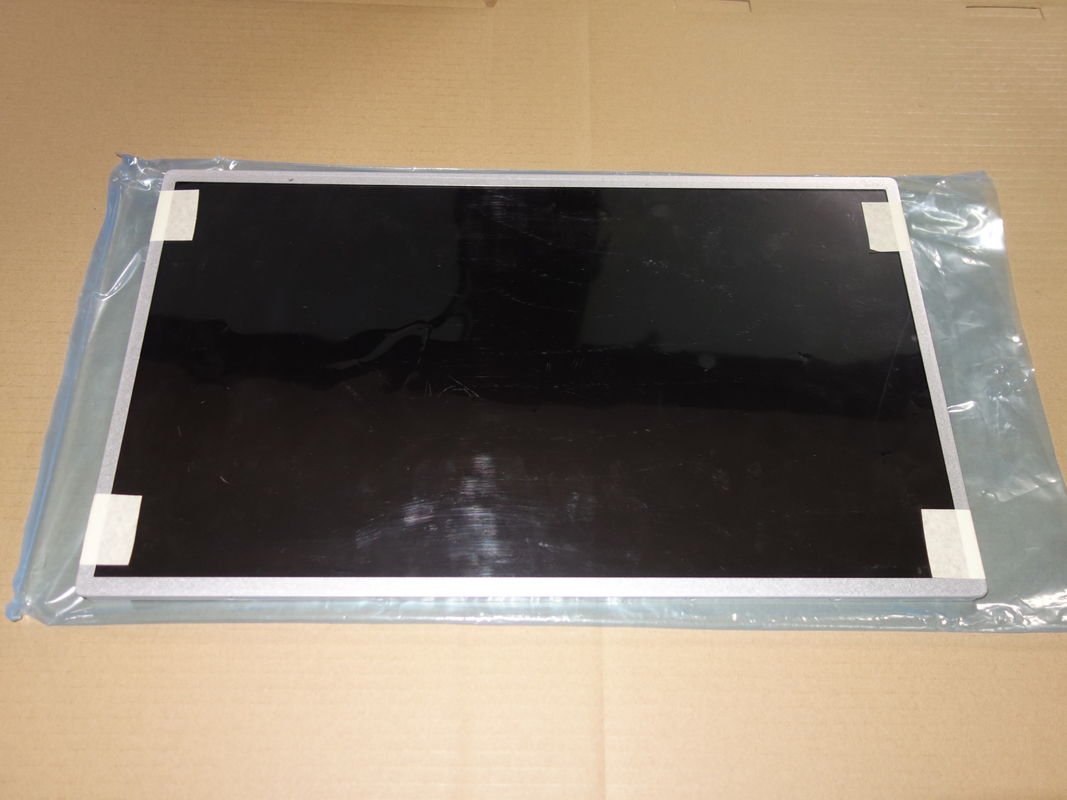

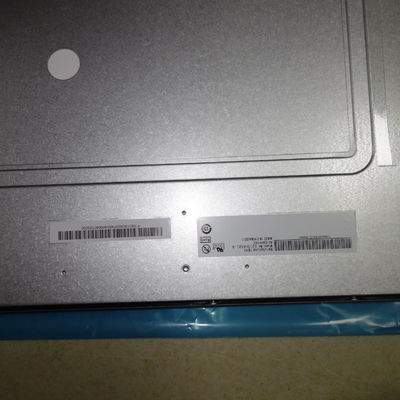

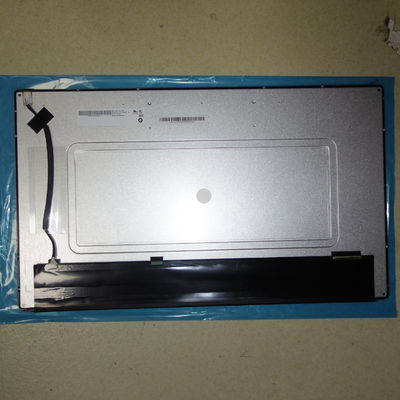

21.5" G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
Description Of AUO LCD Panel
G215HAN01.0 (Alias: 97.21G03.000) is a 21.5 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.1 which was released out on 2 18 2019, G215HAN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
Specification Of AUO LCD Panel
| Display Area | 476.064×267.786 mm (H×V) |
Bezel Area |
479.8×271.3 mm (H×V) |
| Operating Temp. | 0 ~ 60 °C |
| Model Alias | 97.21G03.000 |
| Storage Temp. | -20 ~ 60 °C |
| Vibration Rating | 1.5G (14.7 m/s²) |
| Color Temperature | 6485K |
| Response Time | 12/10 (Typ.)(Tr/Td) ms |
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
| Back-light Features : | |
|---|---|
| Interface Features : | |
| Interface Detail : | |
| Driver Electrical : |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H498ATN01.1 | AUO | 5.0" |
| H466TAN01.1 | AUO | 4.7" |
| H446TAN01.1 | AUO | 4.5" |
| A070STN01.2 | AUO | 7.0" |
| M215HTN01.1 CELL | AUO | 21.5" |
| M195RTN01.0 CELL | AUO | 19.5" |
| H572TVN01.2 | AUO | 5.7" |
| H402VVN01.0 | AUO | 4.0" |
| M240HTN01.2 CELL | AUO | 24.0" |
| A050VVN01.3 | AUO | 5.0" |
| M195RTN01.1 CELL | AUO | 19.5" |
| H430VAN01.0 | AUO | 4.3" |
| T390HVN04.0 CELL | AUO | 39" |
Application Of AUO LCD Panel G215HAN01.0
1. Medical Equipment
2. Security Monitoring System
3. Industrial Control
4. On-board display
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
