Product Details:
|
| Panel Brand: | AUO | Panel Model: | G101EAN01.0 |
|---|---|---|---|
| Panel Size: | 10.1" | Panel Type: | A-Si TFT-LCD , LCM |
| Resolution: | 800(RGB)×1280, WXGA, 150PPI | Pixel Format: | RGB Vertical Stripe |
| Display Area: | 135.36(W)×216.576(H) Mm | Display Mode: | AHVA, Normally Black, Transmissive |
| High Light: | LCM Auo LCD Display,G101EAN01.0,ROHS Auo LCD Display |
||

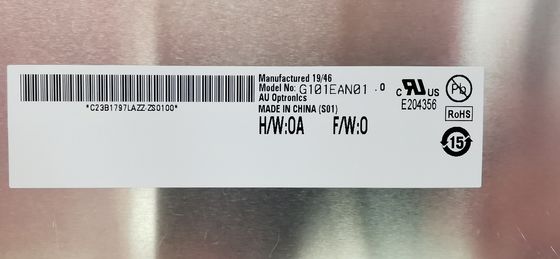

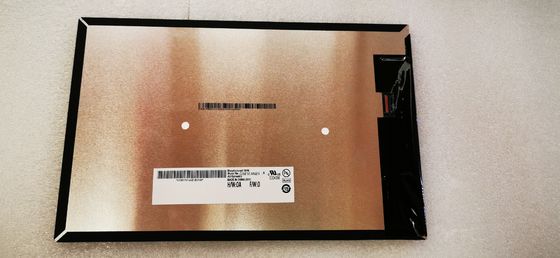

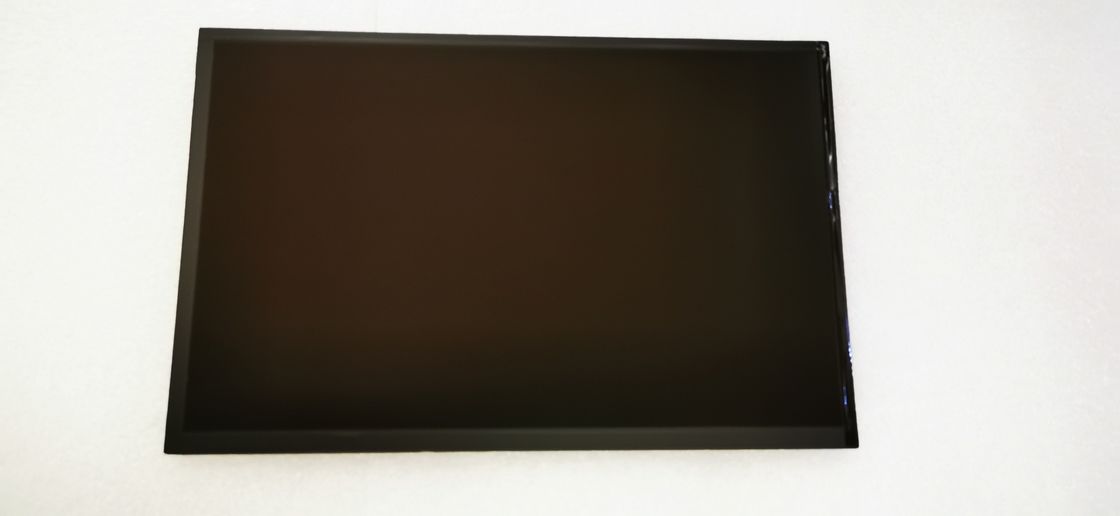

ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display
Quick Details
AUO G101EAN01.0 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.25/1.33 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 58% | sRGB | 78% coverage |
| Adobe RGB | 60% coverage | DCI-P3 | 60% coverage | |
| Rec.2020 | 43% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Datasheet Referenced : | File Number | Version | Language | Issue Date |
|---|---|---|---|---|
| - | Ver0.1 | English | 2019 - 1 - 4 | |
| Panelook Latest Update : |
2020-05-11 13: |
|||
Application of AUO G101EAN01.0
Industrial Control Equipment: remote control, punched-card machine...
Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams
>> Quality ensurance
100% AUO original and brand new!
warranty :12 months !You can enjoy the real panels directly from AUO factory;
>> Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!
>> Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !
Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
