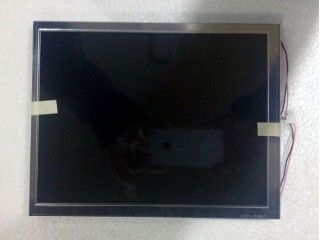

Product Details:
|
| Size: | 8.4 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Brightness: | 600 Cd/m2 (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Viewing Angle: | 75/75/70/50 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
| Lamp Type: | 2 Pcs CCFL , 30K Hours , Without Driver | Display Colors: | 262K/16.7M 45% NTSC |
| Best View On: | 12 O'clock | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Touch Screen: | Without |
1.LB084S01-TL01 Optical Details:
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 7/18 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 75/75/70/50 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 44% | sRGB | 61% coverage |
| Adobe RGB | 46% coverage | DCI-P3 | 45% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
2.LB084S01-TL01 Mechanical Details:
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.071×0.213 mm | Pixel Pitch(W×H) | 0.213×0.213 mm [119PPI] | |
| Physical Size : | Active Viewing | 170.4(W)×127.8(H) mm | Overall Dim. | 189.5(W)×148.6(H) mm |
| Bezel Opening | 173.0(W)×130.6(H) mm | Overall Depth | 7.0/9.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 320/330g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3.LB084S01-TL01 Interface Details:
| Signal Electrical : | Input Current | 184/212mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.61/0.70W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT100-20P-LS-SMT | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-180A | |
4.LB084S01-TL01 Lightting Details:
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/7.0/8.0mA (Min./Typ./Max.) | Input Voltage | 380/390/480V (Min./Typ./Max.) | ||
| Frequency | 30/60/80KHz (Min./Typ./Max.) | Turn-on Voltage | 800/1050V (Max.)(Ta=+25/0℃) | |||
| Consumption | 5.46/6.01W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment  |
| JST | BHSR-02VS-2 | 2 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
