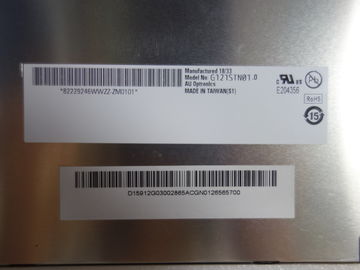

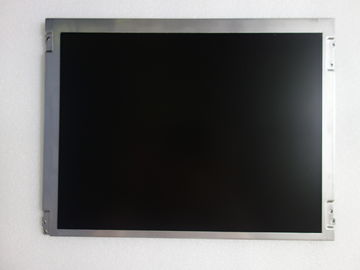

LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen

LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen

    • LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen
    • LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen
    • LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen
  • LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen

    Product Details:

    Place of Origin: Japan
    Brand Name: AUO
    Certification: ISO9001
    Model Number: G121STN01.0

    Payment & Shipping Terms:

    Minimum Order Quantity: 1

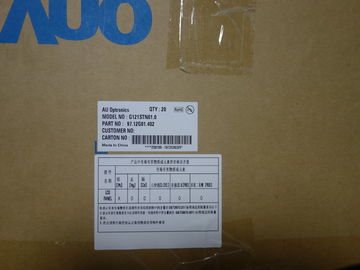

    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
    Delivery Time: 1-3 Working Days
    Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
    Supply Ability: 500PCS
    Contact Now
    Detailed Product Description
    Size: 12.1 Inch Resolution: 800×600
    Viewing Angle: 80/80/65/75 (Typ.)(CR≥10) Best View On: 6 O'clock
    Display Colors: 262K/16.2M 55% NTSC Contrast Ratio: 600:1 (Typ.) (TM)
    Response Time: 25/10 (Typ.)(Tr/Td) Pixel Format: RGB Vertical Stripe
    Touch Screen: Without Input Voltage: 3.3V (Typ.)
    Surface: Antiglare, Hard Coating (3H)

    1.AUO G121STN01.0 Mechanical Details



    Pixel Features :
    Pixel Format:800(RGB)×600, SVGA
    Dot Pitch:0.1025×0.3075 mm (H×V)
    Configuration:RGB Vertical Stripe
    Pixel Pitch:0.3075×0.3075 mm (H×V)
    Mechanical Size :
    Display Area:246×184.5 mm (H×V)
    Bezel Area:249.05×188.3 mm (H×V)
    Outline Dim.:279×209 mm (H×V)
    Outline Depth:5.73/9.5 (Typ./Max.) mm
    Outline Features :
    Form Factor:Flat Rectangle
    Orientation:Landscape type
    Aspect Ratio:4:3 (H:V)
    Shape Style:-
    Holes & Brackets :
    Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel
    Other Features :
    Weight:580g (Max.)
    Surface:Antiglare, Hard coating (3H)



    2.AUO G121STN01.0 Optical Details



    Basic Information :
    Brightness:300 cd/m² (Typ.)
    Contrast Ratio:600:1 (Typ.) (Transmissive)
    Viewing Angle:80/80/65/75 (Typ.)(CR≥10)
    Optical Mode:TN, Normally White, Transmissive
    Viewing Direction:6 o'clock
    Response Time:25/10 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity:Wx:0.313; Wy:0.329
    Color Numbers:262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature:6485K
    Uniformity:1.33 (Max.)(5 points)





    3.AUO G121STN01.0 Backlight Details



    Back-light Features :
    Lamp Type:WLED
    Amount:9S2P
    Life Time:30K(Min.) (Hours)
    Replacement:Replaceable
    Lamp Shape:2 strings
    Position:Edge light type (Top side)
    Lamp Electrical :
    Voltage Input:30.6/32.4V (Typ./Max.)
    Current Input:60/90mA (Typ./Max.)
    Consumption:3.7/5.8W (Typ./Max.)
    Interface Features :
    Type:Connector
    Position:-
    Lamp Driver:With LED Driver
    Interface Detail :
    Brand:Model
    Pin Pitch:Pins
    Amount:Configuration
    1.25 mm
    5 pins
    1 pcs

    Driver Electrical :
    Voltage Input:12.0±0.6V
    Current Input:0.31A (Typ.)
    Consumption:3.76/4.04W (Typ./Max.)





    4.Service

    LED Driver TFT LCD Display 12.1 Inch G121STN01.0 Industrial Without Touch Screen

    5.FAQ



    Q1:What's the quality of your LCD Panel?

    A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

    Q2:What is your return and refund policy?

    A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

    Q3:How long is the lead time?

    A:The lead time is about 2-3 working days after receipt of payment.

    Q4:Do you accept sample order?

    A:Yes,sample order is welcome.

    Q5:How can I get the quotation?

    A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
