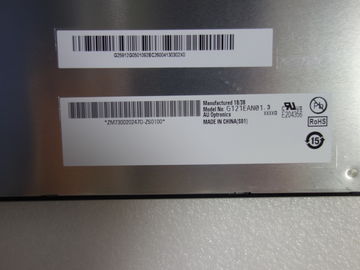

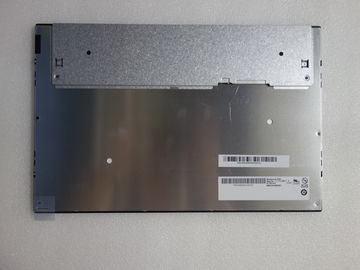

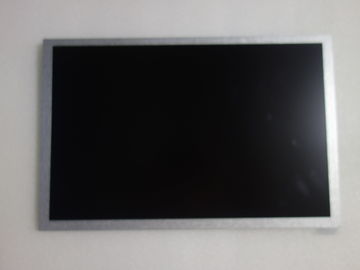

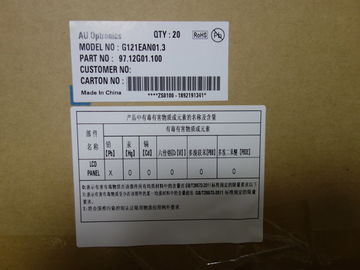

12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3

12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3
12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3 12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3 12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3 12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3

Large Image :  12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G121EAN01.3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability: 500PCS

12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3

Description
Size: 12.1 Inch Composition: LCM
Resolution: 1280×800 Brightness: 1500 Cd/m² (Typ.)
C/R: 1000:1 Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Display Colors: 262K/16.7M 99% SRGB Lamp Type: WLED , 70K Hours , Without Driver
Touch Screen: Without Application: Outdoor High Brightness
High Light:

auo lcd screen

,

auo lcd display

1.AUO G121EAN01.3 Optical Details



Basic Information : Luminance 1500 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Operating Mode IPS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 73% sRGB 99% coverage
Adobe RGB 75% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -



2.AUO G121EAN01.3 Mechanical Details



Pixel Features : Number of Pixel 1280(RGB)×800 [WXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.068×0.204 mm Pixel Pitch(W×H) 0.204×0.204 mm
Physical Size : Active Viewing 261.12(W)×163.2(H) mm Overall Dim. 283(W)×185.1(H) mm
Bezel Opening - Overall Depth 9.4 (Typ.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:10 Shape Style -
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 490g (Max.) Surface Antiglare, Hard coating (3H)



3.AUO G121EAN01.3 Interface Details



Signal Electrical : Input Current 458mA (Max.) Input Voltage 3.3V (Typ.)
Consumption 1.65W (Max.) Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-SEB20P-HFE 1 pcs 1.25 mm 20 pins LVDS-20P1C8B-010D



4.AUO G121EAN01.3 Lightting Details



Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 70K(Typ.) (Hours)
Lamp Electrical : Input Current 50mA (Typ.) Input Voltage 24.4/31.24V (Typ./Max.)
Consumption 4.88/6.25W (Typ./Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST SM10B-SHLS-TF(LF)(SN) 1 pcs 1.0 mm 10 pins BLE-10PINS-NNCAACCAAC
Backlight Driver : No



5.Service

12.1 Inch Auo Lcd Screen , 1280×800 Resolution Lcd Tv Panel Replacement G121EAN01.3 0

6.FAQ



Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
