Product Details:
|
| Size: | 7 Inch | Luminance: | 300 Cd/m² (Typ.) |
|---|---|---|---|
| View Direction: | 6 O'clock | Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) |
| Support Color: | 262K/16.2M 50% NTSC | Weight: | 180 G |
| Frame Rate: | 60Hz | Power Supply: | 3.3V (Typ.) |
| Touch Panel: | Without | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | auo display panel,auo lcd screen |
||

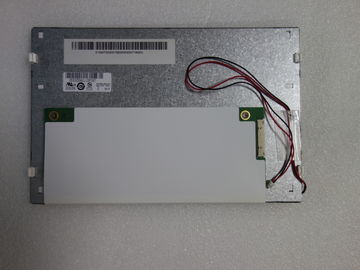

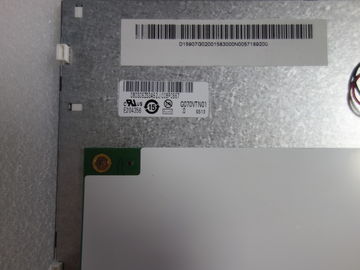

1.AUO G070VTN01.0 Mechanical Details
| Pixel Features : |
Resolution
800×480(RGB), WVGA
Dot Pitch(mm)
0.1905×0.0635 (H×V)
Pixel Format
RGB Horizontal Stripe
Pixel Pitch(mm)
0.1905×0.1905 (H×V)
|
|---|---|
| Mechanical Size : |
Active Area(mm)
152.4(H) × 91.44(V)
Bezel Area(mm)
155.2(H) × 92.84(V)
Outline Dim.(mm)
170(H) × 111(V)
Depth(mm)
8.0±0.3
|
| Outline Features : |
Form Style
Flat Rectangle
Shape Style
-
Aspect Ratio
15:9 (H:V)
Orientation
Landscape type
|
| Mounting : |
Side mounting holes (4-M2) on left, right bezel
|
| Other Spec : |
Weight
180g
Treatment
Antiglare, Hard coating (3H)
|
2.AUO G070VTN01.0 Optical Details
| Basic Information : |
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
65/65/50/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
12/18 (Typ.)(Tr/Td)
|
|---|---|
| Color Performance : |
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
White Uniformity
1.30 (Max.)(5 points)
|
3.AUO G070VTN01.0 Backlight Details
| Backlight Features : |
Type
WLED
Quantity
3S7P
Position
Edge light type (Bottom side)
Replacement
-
Shape
Array
Life Time
30K(Min.) (Hours)
|
|---|---|
| Lamp Electrical : |
Voltage Supply
9.6/10.5V (Typ./Max.)
Current Supply
140mA (Typ.)
Consumption
1.218/1.344/1.47W (Min./Typ./Max.)
|
| Interface Features : |
Position
-
Type
Connector
|
| Interface Detail : |
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
E&T
1.25 mm
2 pins
1 pcs
BLE-2PINS-AC
|
| Backlight Driver : |
No
|
