Product Details:
|
| Size: | 5.7 Inch | Resolution: | 320×240 |
|---|---|---|---|
| Brightness: | 500 Cd/m² (Typ.) | Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10) |
| Best View On: | 12 O'clock | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Display Colors: | 262K 50% NTSC | Lamp Type: | WLED , 50K Hours , With LED Driver |
| Input Voltage: | 3.3V (Typ.) | Touch Screen: | Without |
| High Light: | auo lcd screen,auo lcd display |
||

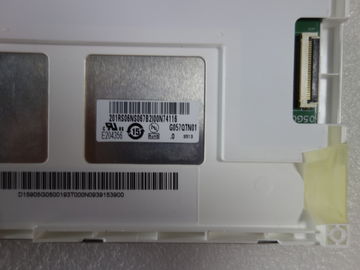

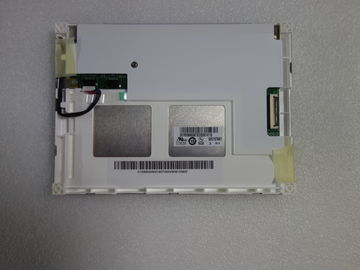

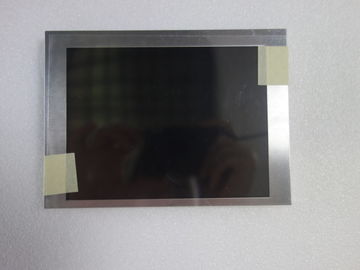

1.AUO G057QTN01.0 Mechanical Details
| Pixel Features : |
Resolution:320(RGB)×240, QVGA
Dot Pitch(mm):0.120×0.360 (H×V)
Pixel Format:RGB Vertical Stripe
Pixel Pitch(mm):0.360×0.360 (H×V)
|
|---|---|
| Mechanical Size : |
Active Area(mm):115.2(H) × 86.4(V)
Bezel Area(mm):118.2(H) × 89.4(V)
Outline Dim.(mm):144(H) × 104.6(V)
Depth(mm):12.3/12.8 (Typ./Max.)
|
| Outline Features : |
Form Style:Flat Rectangle
Shape Style:-
Aspect Ratio:4:3 (H:V)
Orientation:Landscape type
|
| Mounting : |
Rear mounting holes (4-Φ2.6)
|
| Other Spec : |
Weight:150/165g (Typ./Max.)
Treatment:Antiglare, Hard coating (3H)
|
| Basic Information : |
Luminance(cd/m²):500 (Typ.)
Contrast Ratio:700:1 (Typ.) (Transmissive)
Viewing Angle:80/80/70/70 (Typ.)(CR≥10)
Display Mode:TN, Normally White, Transmissive
Best View on:12 o'clock
Response(ms):15/10 (Typ.)(Tr/Td)
|
|---|---|
| Color Performance : |
White Coordinate:Wx:0.313; Wy:0.329
Display Colors:262K (6-bit)
Color Temperature:6485K
White Uniformity:1.30 (Max.)(5 points)
|
| 1931 Color Gamlt : |
NTSC Ratio
49%
sRGB
69% coverage
Adobe RGB
52% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
3.AUO G057QTN01.0 Interface Detail
| Signal Electrical : |
Voltage Supply:3.3V (Typ.)
Current Supply:115/130mA (Typ./Max.)
Consumption:0.46/0.51W (Typ./Max.)
|
|---|---|
| Signal Type : |
CMOS (1 ch, 6-bit):
Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
|
| Interface Features : |
Position:-
Type:Connector
|
| Interface Detail : |
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STARCONN
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-010A
|
4.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q4:Do you accept sample order?
A:Yes,sample order is welcome.
Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
